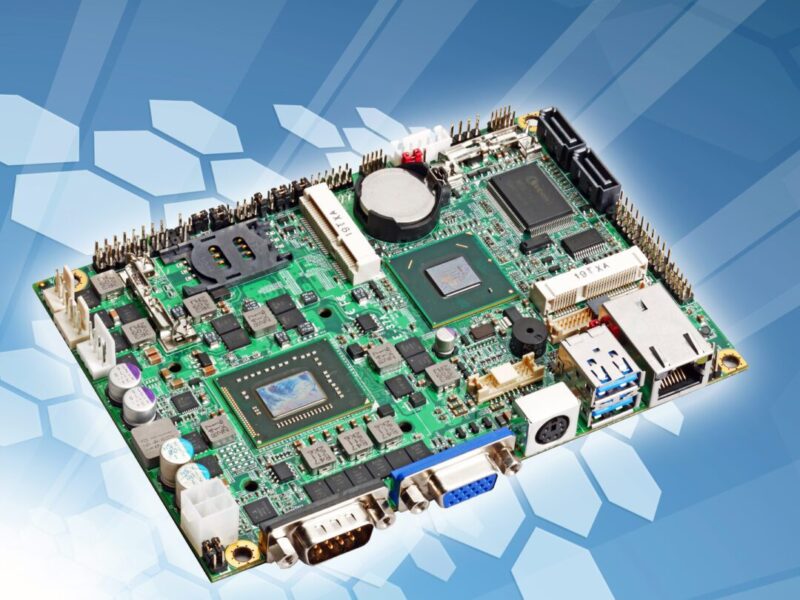

146x101mm embedded SBC supports a low-power single and dual core Celeron processors
The dual core 17W TDP 1.1GHz 847E, the single core 17W TDP 1.4GHz 827E and the dual core 10W TDP 1.0GHz 807UE can all be specified. All the units provide excellent media, graphics, and I/O flexibility to meet requirements of a broad range of embedded applications. Two 600MB/s SATA3 interfaces are provided for mass storage interface. VGA, DVI and a 24-bit LVDS dual channel video are supported, and HD audio is provided by a Realtek ALC888 Codec. A GigaLAN port, one RS232 port, a RS232/422/485 port and six USB2.0 ports provide external I/O communications.
Expansion capability consists of either two PCIE mini card sockets or one PCIE mini card socket and an mSATA SSD port. An 8-bit GPIO and an IrDA interface are on-board and SMBUS is supported. The LE37A operates from 9V-24VDC, enabling it to be installed in both cars and commercial goods vehicles to provide mobile computing.
Visit BVM Limited at www.bvm-store.co.uk
