15-position female HD D-sub connectors measure 20.6×10.90mm

New Products |
By eeNews Europe

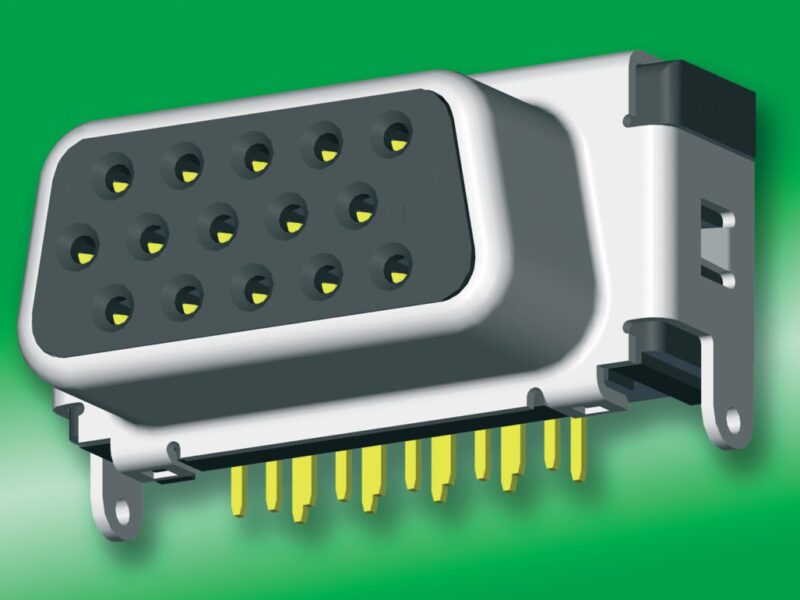

The 070546XR015XX69XX model is a 15-position, right-angle high-density (HD) D-sub socket with a mating interface measuring only 20.6×10.9mm. This reversed-type three-row D-sub connector is designed for through-hole reflow (THR) mounting using a pin in paste soldering process. Two soldering tags attached to the sides provide extra stability for anchoring on the PCB; they ensure a sturdy hold, even when high insertion and removal forces are applied.

The number of mating cycles is specified at 5,000. Other technical specifications for this compact D-sub socket are a contact rating of 250 V DC/0.5 A per pin, a low contact resistance of 50 mΩ (max.), an insulation resistance of 1,000 MΩ (minimum, initial) and an operating temperature range from –40 to +105°C. This lead-free, HD D-sub socket is specified in accordance with UL94V0 and is available in black, blue and grey.
