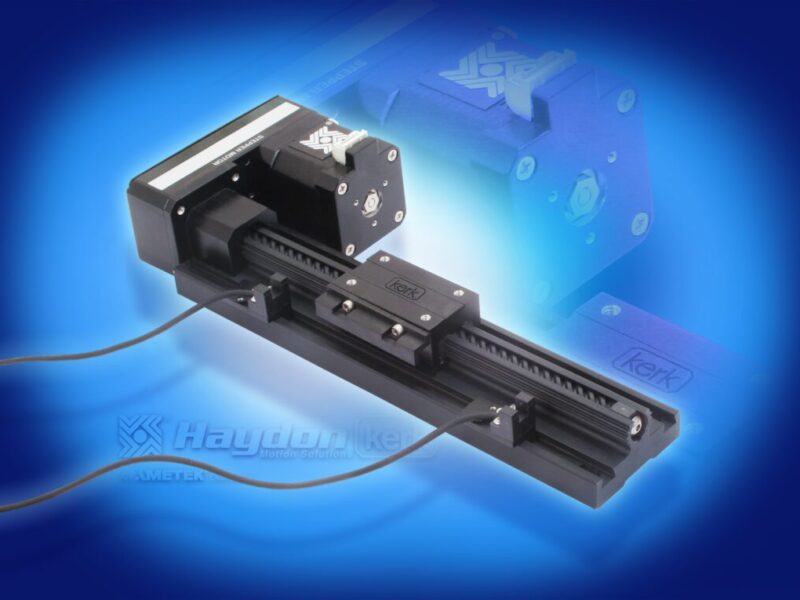

180º folded-over motorized linear rail system

180º folded-over motorized linear rail system

New Products |
By eeNews Europe



The rail also contains the capability of mounting sensors within the integrated dovetail grooves. The standard drive ratios available from the motor to the screw are 2:1, 1:1, and 1:2, using lightweight aluminum pulleys and a fiberglass reinforced neoprene timing belt. Screw leads available range from 1.27mm/revolution to 30.48mm/revolution. When using a 2:1 ratio, a 1.27mm/revolution lead screw, and a 200 step/revolution stepper motor, a positioning resolution of 0.125 thousandths is possible. For high-speed applications, a 1:2 pulley ratio and a 30.5mm/rev lead screw provides a max speed of over 178mm/s.

All RGS and RGW linear rails feature standard wear-compensating anti-backlash driven carriages to insure repeatable and accurate positioning. The splined aluminum guide rail and 303 stainless steel lead screw is coated using Kerkote TFE coating, providing a permanently lubricated surface. Maximum load capability of the folded-over motorized RGS is 35 lbs in the “Z” direction and 35 lbs in the hanging/gantry load position. Maximum “roll” and “yaw” moment is 3.25 in-lbs and maximum “pitch” moment is 5.66 in-lbs.

Visit Haydon Kerk Motion Solutions at www.HaydonKerk.com
