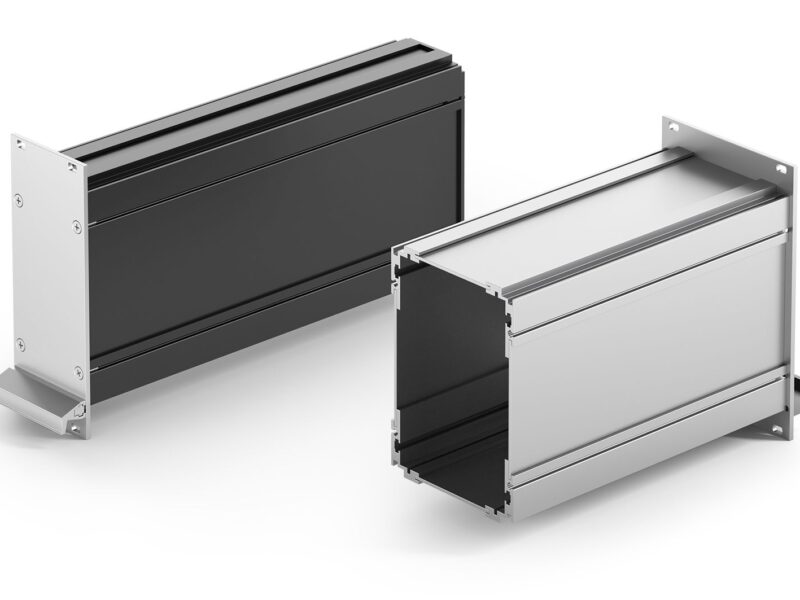

19″ insert modules with variable dimensions
The new cassette type G allows any standard and customer specific seize to be realized thanks to four edge profiles with integrated grooves for the insertion of side plates as well as top and bottom panels. T-grooves for threaded inserts, slide nuts or screw heads allow a simple mounting of the electronics. External screw channels for the mounting of front and back panels prevent short circuits caused by possible falling out screw chips.
The standard sizes of the cassette type G amount to 3U height, an insertion depth for Europe cards with the 160mm or 220mm sizes as well as five different widths (10, 12, 14, 16 and 20 HP). The different back panel cuts from the standard portfolio, customized cuts allow different functions of the cassette. For a better ventilation of the electronics Fischer Elektronik offers an optionally perforated cover panel. Optional handles made of plastics or aluminium ease removal and insertion of the cassette. Three different surface treatments are available: natural colour anodized (ME), black anodized (SA) or electrical conductive transparent passivated (TP).
Fischer Elektronik – www.fischerelektronik.de
