1kVA compact 3-Phase sine wave inverter targets industrial use

1kVA compact 3-Phase sine wave inverter targets industrial use

New Products |
By eeNews Europe



14.00

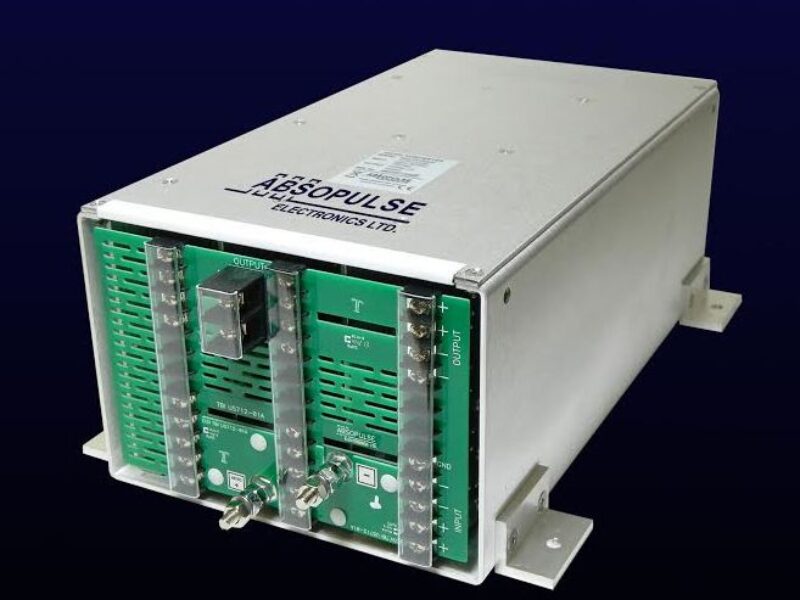

The CTP 1K series is suitable for industrial applications where a low power, three phase AC voltage solution is required, including for 400Hz servo systems to test avionic instrumentation and equipment, or for testing small 3-phase equipment in engineering labs.
The units offer 3-phase outputs of 208Vrms, 380Vrms or 400Vrms (line-to-line) at frequencies of 400Hz, 60Hz or 50Hz. Phase-to-neutral voltages of 115Vrms, 220Vrms or 240Vrms can also be used. They operate from DC voltages of 24V, 48V, 110V or 125Vdc. The input meets EN55022 Class A requirements for conducted noise.

The units feature comprehensive electronic protection including inrush current limiting, reverse polarity protection, input to output isolation, output current limiting with short-circuit protection and thermal shutdown with auto-resetting. The fan cooled series delivers 1kVA continuous power over a 0°C to +50°C temperature range without de-rating; wider operating temperature ranges are also available.



Visit Absopulse at www.absopulse.ch
