3U CompactPCI PlusIO compatible blade with IPMI and TPM support

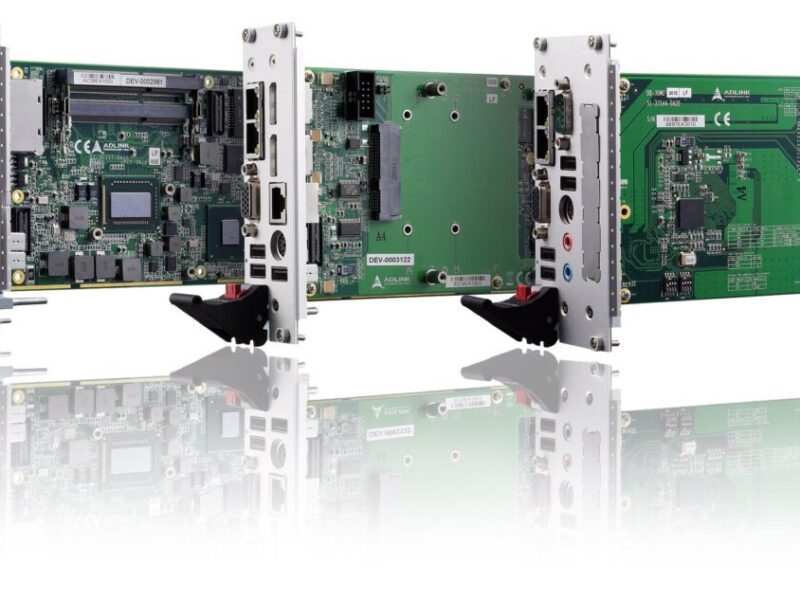

The cPCI-3970 Series includes two blade types based on the same electrical and mechanical design: the cPCI-3970 which is equipped with HM connectors, and the fully PICMG 2.30 compliant cPCI-3971 which features an Ultra Hard Metric (UHM) J2 connector with a data transfer speed of 5 Gb/s. Both products are compatible with the CompactPCI PlusIO pin assignment and support PCI Express Gen2 x4, three SATA ports, three USB 2.0 ports and two Gigabit Ethernet ports at the J2 connector. For high density computing applications, the cPCI-3970 Series can operate in a system slot as a master or in a peripheral slot as a standalone blade.
In addition, the cPCI-3970 Series is compliant with the PICMG 2.9 specification and supports system management functions based on the Intelligent Platform Management Interface (IPMI) as well as hardware monitoring of physical characteristics such as CPU and system temperature, DC voltages and power status. With different riser cards installed and the addition of a Rear Transition Module (RTM), the cPCI-3970 Series provides versatile I/O interfaces up to two DisplayPort/DVI/HDMI, four serial ports, four SATA ports, five USB 2.0 ports, four GbE ports, PS/2 KB/MS, audio ports, and one PMC/XMC site for expansion flexibility. Trusted Platform Module (TPM 1.2) is also supported to provide efficient hardware-based data protection.
The cPCI-3970 Series supports up to two dual-mode DisplayPorts for dual independent digital display outputs. The DisplayPort supports single link DVI or HDMI by passive adapter cable and analog VGA interface by active adapter cable. With the ADLINK XMC-G460 graphics module installed in the XMC site, the cPCI-3970 Series supports up to four independent displays. Storage interfaces supported by the cPCI-3970 Series include one SATA 6 Gb/s direct connector for a 2.5” HDD/SSD, CompactFlash socket, CFast socket and three SATA ports on RTM with RAID 0/1/5/10 support.
