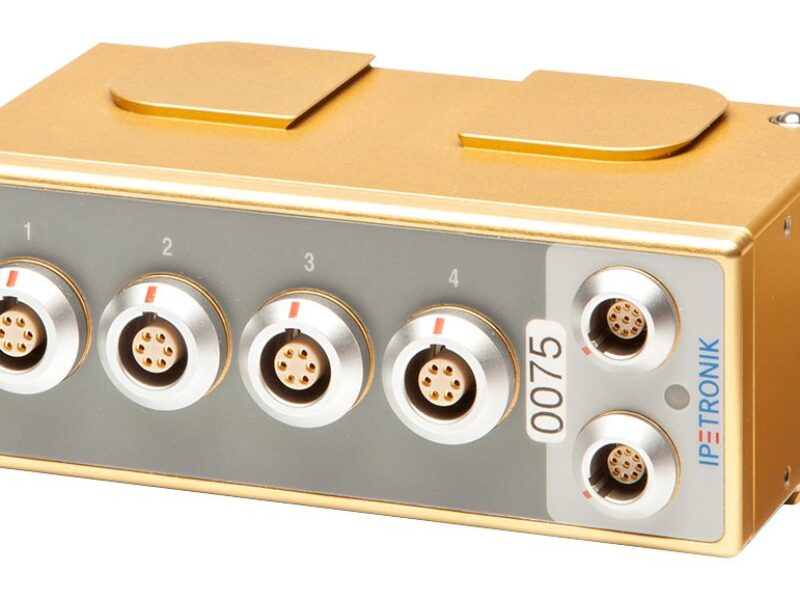

4-channel analog input device for voltage and sensor-based measurements
M-SENS2 covers twelve unipolar and twelve bipolar voltage measurement ranges from ±0.1 V to ±100 V. All inputs also support the often used 0 to 20 mA or ±20 mA current input without adding external hardware. Each input provides a selectable sensor excitation of up to 15 VDC and a maximum supply current of 60 mA. Measurement inputs, sensor excitation, CAN bus and power supply are completely galvanically isolated from each other. The output data is transmitted using CAN bus 2.0B the automotive standard according to ISO 11898-2 with up to 1 MBit/s. All configuration settings can be set up conveniently using IPEmotion, the company’s configuration and data acquisition software.
The redesigned M2-Series enclosure measures 106x43x60mm and can be connected to other units. All M2-Devices are designed for use in the engine compartment supporting IP67 protection class, as well as the extended temperature range of –40 °C to +125 °C. A supply voltage in the range of 9 VDC to 36 VDC is required, whereby the module still works down to the lower limit of 6 VDC once powered up. Typical power consumption is 3.0 W.
Visit Ipetronik at www.ipetronik.com
