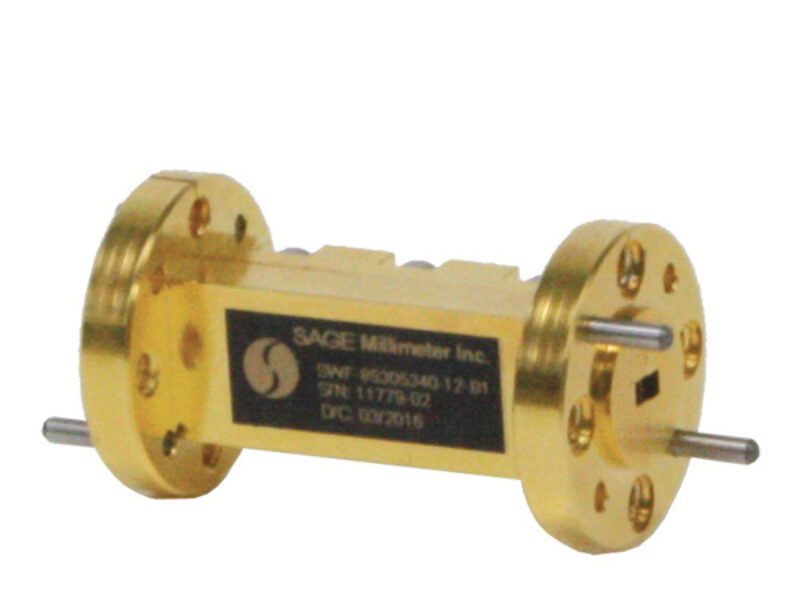

71 to 76 GHz waveguide bandpass filter

71 to 76 GHz waveguide bandpass filter

New Products |
By Jean-Pierre Joosting

The nominal insertion loss of the bandpass filter is 2 dB and the typical rejection is 50 dB. The standard interface offers WR-12 waveguides with UG-387/U flanges. Since both low and high end cut off frequencies can be selected by modifying the design, various custom models are available.

The low cost waveguide bandpass filter is ideal for applications in communication systems, radar, and sub-assemblies. Typical passband VSWR is 1.2:1.
