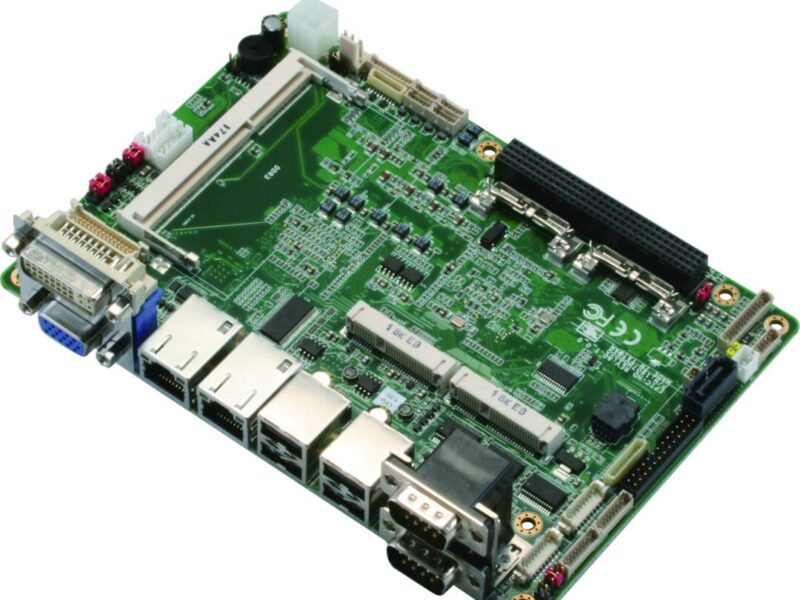

AMD G Series-based EPIC board uses 1066MHz DDR3 for T44R and T40R processors
With the APU and PCH on the solder side, this inverted design is a great thermal solution for system integrators. The T40R processor offers a wide operating temperature of -20° to +70°C, while the T56N and T44R processors offer an operating temperature from 0° to 60°C.
This AMD G Series-based EPIC board uses DDR3 1066MHz for the T44R and T40R processors, while the T56N utilizes DDR3 1333MHz for system memory. There is a SATA 3.0Gb/s and mSATA to satisfy storage requirements. The EPIC-HD07 offers two Realtek 8111E Gigabit Ethernet ports for faster internet connections. With ample I/O interfaces that support 16-bit DIO, the EPIC-HD07 has eight USB ports, up to six COM ports, one Mini card, one Line-in/Line-out/Mic-in and one keyboard/mouse. The PCI-104 slot adds to the robustness of the expansion bus and system reliability.
Visit AAEON Technology at www.aaeon.com
