Application processor module measures 29.5×22.5mm

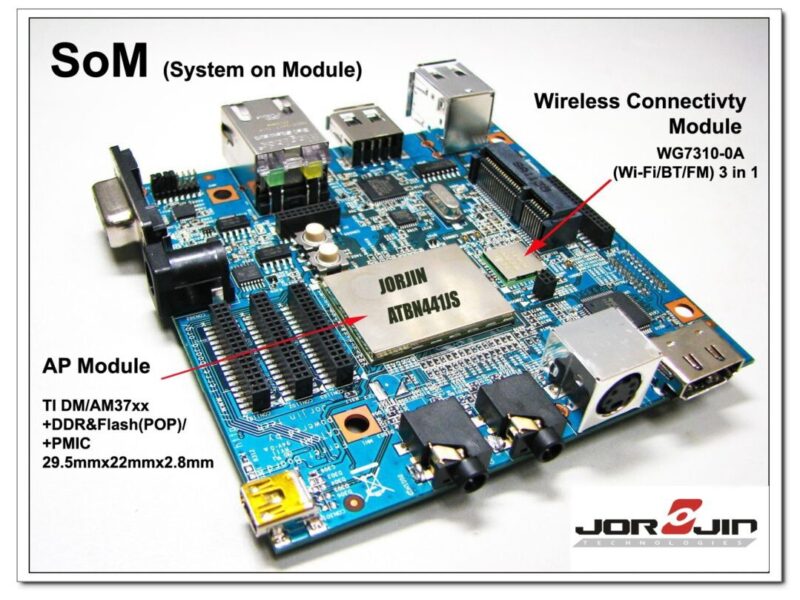

The ATBN module family is delivered with a tested operating system and device driver software, reducing the risk and time to bring an embedded product to market. In addition, this range of modules are pin compatible, providing a straightforward upgrade path to additional memory or DSP functionality. Jorjin has partnered with several companies to bring the Ferretboard evaluation board to market. This fully featured board supports the full range of embedded connectivity for the ATBN module, including USB, HDMI, WLAN, Bluetooth, analog video and analog audio in a 95x95mm footprint. The Ferretboard also supports connections to an LCD touch panel, 2G/3G modem with onboard SIM, MMC flash, CMOS camera, switch matrix and GPIO connections. The current release currently supports Android 2.2, with full schematics, gerber files and source code available on request.
Visit Jorjin Technologies at www.jorjin.com.tw
