By Christoph Hammerschmidt

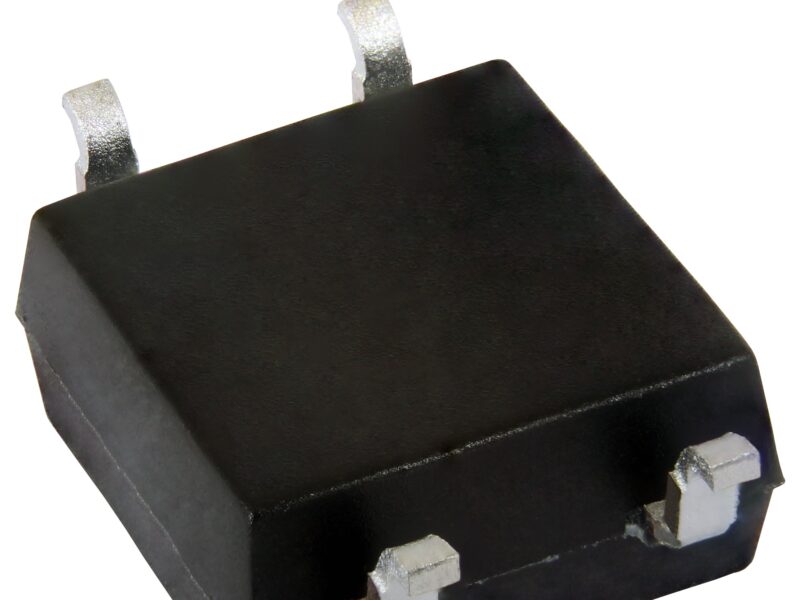

The VOMA617A Series features a GaAlAs infrared emitting diode, which is optically coupled to a silicon planar phototransistor detector. The coupling devices are designed for signal transmission between two electrically separated circuits, particularly in automotive applications, and provide low coupling capacitance.  Electrical specifications of the optocoupler include a collector emitter voltage of up to 80 V and a 3750 VRMS isolation voltage rating. The Creepage and clearance distance of the device is ≥ 5 mm.

Suitable applications for the VOMA617A optocoupler are: system control in automotive applications, including EVs and hybrid electric vehicles; electric bicycles and electric motorbikes; signal transmission with galvanic and noise isolation; battery management systems and on-board chargers; switch-mode power supplies; 48 V board net applications; as well as industrial applications with high reliability requirements.

Devices are approved to UL1577, cUL 1577, DIN EN 60747-5-5 (VDE 0844-5), and CQC GB4943.1-2011.
