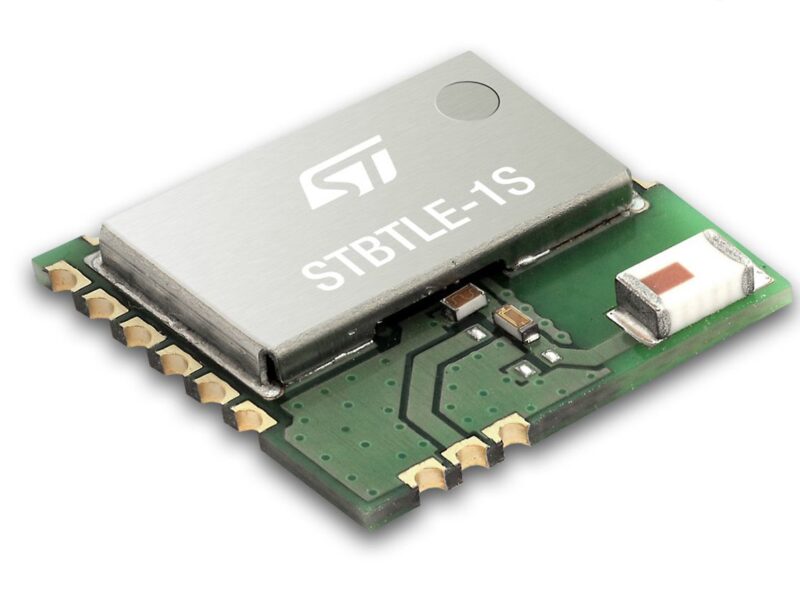

BLE-qualified application processor module is only 11.5- x 13.5-mm
Designed to help product innovators streamline the prototyping and development of connected smart objects, the 11.5- x 13.5-mm BLE module integrates ST’s proven BlueNRG-1 application-processor SoC and balun, high-frequency oscillators, and a chip antenna among others.
Developers can use this module to bypass hardware-design and RF-circuit layout challenges. The SPBTLE-1S is BQE-approved, and FCC, IC, and CE-RED (Radio Equipment Directive) certified to simplify end-product approval for North America and EU markets. ST’s Bluetooth 4.2 certified BLE protocol stack is included, and the supporting Software-Development Kit (SDK) contains a wide range of Bluetooth profiles and sample application code.
The module comes with a wide supply-voltage range of 1.7-V to 3.6-V, making it suitable for small, battery-operated objects powered by various types of sources such as a primary button cell or rechargeable Li-ion battery. High RF output power of +5 dBm and good receiver sensitivity help to maximize communication range and reliability.
The BlueNRG-1 SoC at the heart of the SPBTLE-1S implements the complete BLE physical layer (PHY), link layer, and network/application-processing engine comprising a low-power ARM Cortex-M0 core with 160KB Flash, 24KB RAM with data retention, and a security co-processor. The SoC also implements smart power management, with a DC/DC converter capable of powering the SPBTLE-1S module to ensure optimum energy efficiency. Users can leverage an extensive set of interfaces, including a UART, two I²C ports, SPI port, single-wire debug, and 14 GPIOs, as well as peripherals including two multifunction timers, a 10-bit ADC, watchdog timer and real-time clock, a DMA controller, and a PDM stream processor interface, which is ideal for developing voice-controlled applications.
