Board accelerates AI, DNN and accelerators development

Board accelerates AI, DNN and accelerators development

By eeNews Europe

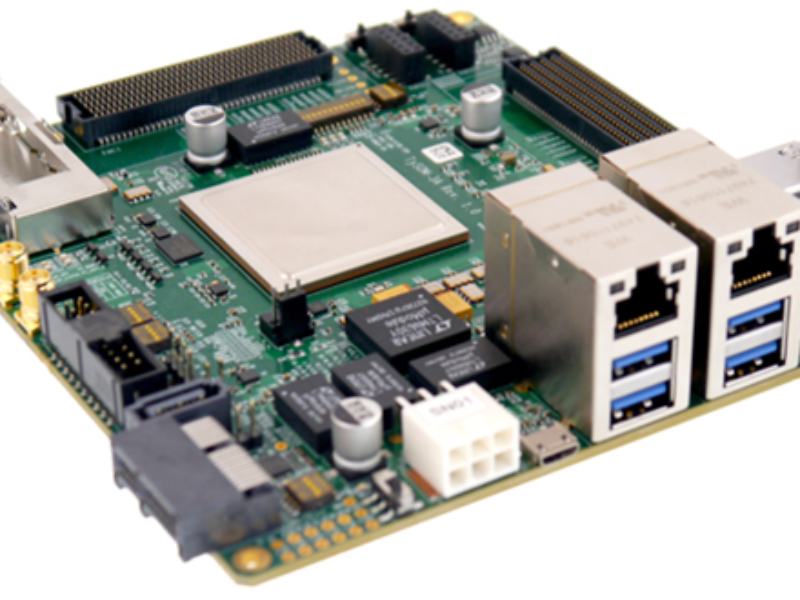

The new board features a Xilinx Zynq UltraScale+ ZU19EG FFVB1517 MPSoC, which has more than 1 million logic cells, and a quad-core ARM Cortex-A53 platform running at up to 1.5GHz. The kit provides 64-bit processor scalability while combining real-time control with soft and hard engines for SoC prototyping solution, IP verification, graphics, video, packet processing and early software development. It contains 8GB DDR4 SODIMM Memory for the programmable logic and 8GB DDR4 SODIMM memory for the processing system. It also includes 2GB NAND memory, supports Micro-SD card storage, SATA storage and features a 512MB QSPI flash memory. Communication/networking is enabled by 2x Gigabit Ethernet, Wi-Fi & Bluetooth, CAN, 4× USB 3.0, USB to UART Bridge, USB 2.0 OTG, JTAG USB, Pmod, QSFP+ and PCIe x1 GEN3/4 connectors. Multimedia interfaces are provided using DisplayPort, HDMI IN/OUT. To expand the peripherals, 2× FMC HPC VITA 57.1-2010 compliant connectors are provided on the board; thus, additional devices can be connected as FMC Daughter Cards (available from Aldec plus other vendors).

Aldec – www.aldec.com
