CAN bus interface module enables condition-based monitoring

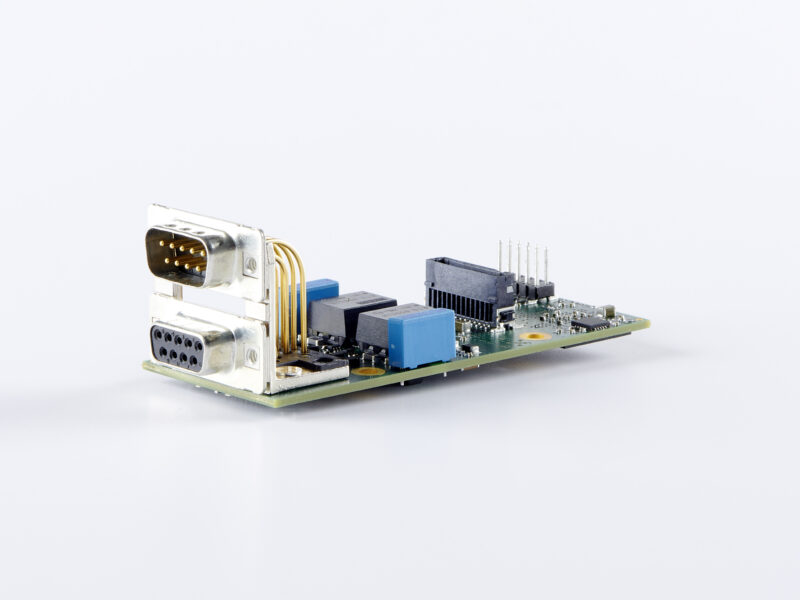

The CyBox I/O CAN module realizes an interface to the CANbus (CAN V2.0B). The module is based on the CAN controller MCP 2515 and has two internal buffers for data which are controlled by the controller with a data rate of 1 Mbit/s. The MCP 2515 also provides the implementation of ISO11898 functionality in the hardware. The CAN interface is galvanically isolated up to 1,500 VDC, offering a high interference resistance in distributed systems. Daisy chaining can be implemented via separate Sub-D connectors. The host interface is designed as an SPI interface and, thus, offers the necessary speed for any kind of CAN transaction.
In unidirectional read-only mode, any intervention in the controller is prevented by blocking writing to the bus in the hardware. This corruption-free communication ensures that control processes, bus signals or writing operations are not affected. Optionally, this module is also available in a bi-directional version.
Dimensions and interfaces comply with Eltec’s proprietary standard for mezzanine modules. Other interface cards are available in the same format. The connection to the base board is made via a 30-pin connector with the corresponding SPI and power supply signals. The modules are designed for the extended temperature range of -40 to +70 °C (+85 °C) and for harsh environmental conditions.
Eltec also offers a complete evaluation kit based on the CyBox RT 2-A automotive wireless router. In addition to the router, the kit includes the CAN module and all necessary accessories such as antennas, adapters, cables, and power supply.
