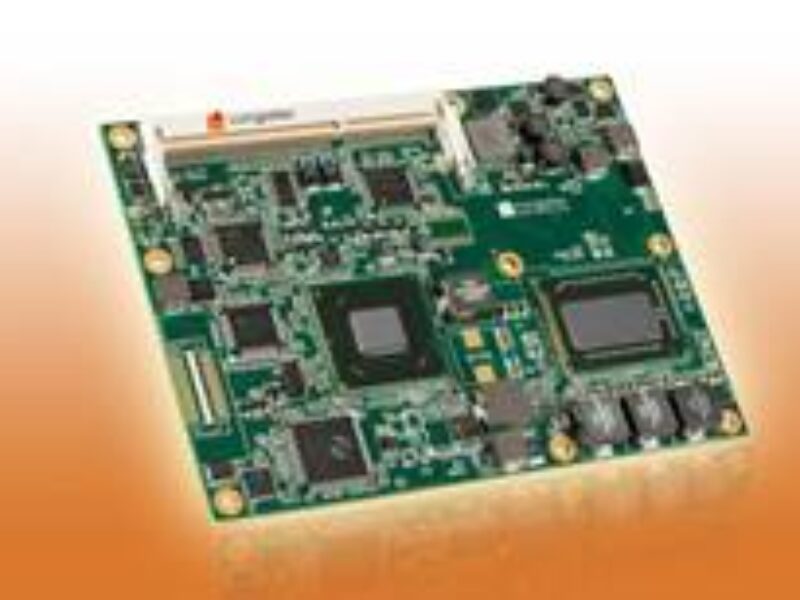

COM Express Type 2 module with third generation Intel Core processor and PCI Express graphics
The conga-BP77 module is aimed at medical, gaming and multimedia applications needing high end graphics performance, for which the internal graphics support from the chip set no longer suffices. The PEG connection is implemented via a customized carrier board. The freely available schematics for the evaluation carrier board conga-CEVAL provide the perfect baseline for developing proprietary solutions.
The crucial innovations of the third generation Intel Core processors relate to the use of 3D trigate transistor technology, 22nm production, more tightly integrated graphics and the improved PEG 3.0 graphics. The change from PEG 2.0 to PEG 3.0 is the performance increase from 5 GT/s to 8 GT/s.
The conga-BP77 is available off the shelf now with the Core i7-3612QE (4 x 2.1 GHz, 6 MB Intel Smart Cache, TDP 35W), Core i7-3555LE (2.50 GHz, 4 MB Intel Smart Cache, 25W) and Core i5-3610ME (2.7 GHz, 3 MB Intel Smart Cache, 35W). The module features the new mobile Intel Express chip set QM77 and offers up to 16 GByte dual channel DDR3 memory (1600 MT/s).
Six PCI Express 2.0 lanes, four SATA interfaces with up to 6 GB/s and RAID support, eight USB 2.0 ports, one EIDE and one Gigabit Ethernet interface facilitate fast and flexible system extensions. Besides PEG 3.0, VGA and LVDS are supported, as well as DirectX 11, OpenGL 3.1 and OpenCL 1.1. Fan control, LPC bus for easy connection of legacy I/O interfaces and the Intel high definition audio round off the set of functions.
All conga-BP77 modules are fitted with the new embedded firmware solution, UEFI. Under UEFI, congatec’s embedded BIOS features are also supported and extended. Even larger applications can now be integrated with the new pre-boot application. This way, for example, embedded diagnostic tools, network-based service programs or system recovery applications can be used regardless of the operating systems.
A matching evaluation carrier board for COM Express Type 2 enabling fast implementation of a PCI Express graphics x16-lane plug is also available.
