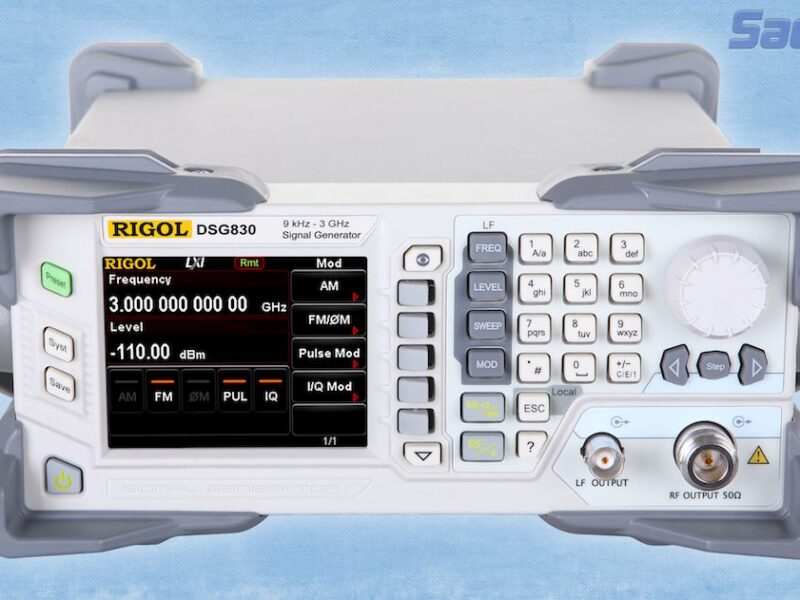

Cost-efficient 3-GHz RF signal generator series delivers high-performance
Featuring very low SSB noise of -115 dBc/Hz, they feature a highly stable internal clock (<2 ppm standard, 5 ppb optional) for creating high performance RF test signals. Operation is easy and intuitive, guided by the 3.5" color LCD with its logically grouped controls.
The DSG800 RF signal generators provide conventional sweep functions (step, list, logarithmic, and linear) as well as analog modulation functions including amplitude modulation, frequency modulation, phase modulation, and pulse modulation. In addition, the DSG800 series offers an optional pulse train generation capability for translating serial data on to an RF Link without needing additional hardware. The pulse train can be used as the modulating signal of pulse modulation and can also be output as an independent pulse generator.
The signal generators support external pulse modulation, but the internal pulse generator can produce baseband signals with adjustable cycle times and pulse widths. The DSG800 signal generators produce high quality pulse modulated signals with a rise/fall time of less than 10 ns and an on/off ratio greater than 70 dB. They feature a specially designed digital automatic level control circuit scheme that ensures the high precision and stability of the output signal. Frequency stability can reach 5 ppb by choosing the high stable reference clock option.
The DSG800 signal generators also have full remote control capability for integration into Automated Test Environments (ATE). The common remote control commands are compatible with most other mainstream products. Test system integrators can build the DSG800s into their test fixtures and control these LXI-compliant RF signal generators using SCPI commands over USB and LAN.
DSG800 RF signal generators made by Rigol provide a clean and stable RF output with low phase noise and high amplitude accuracy, and offer all of the functions of other high-level RF signal generators but at much lower cost.
