PIMs feature pore sizes of less than one nanometer in diameter, compared to the 17 nanometer pore size of typical membrane separators.
The potential of lithium-sulfur batteries has yet to be fully realized due to the uncontrolled migration of soluble sulfur species through the membrane that
separates the electrodes. The crossover of polysulfides reduces battery efficiency and lifetime.
The smaller pore size provides selective control over the ions transported through the membrane. Smaller ions, like lithium and sodium are allowed to pass through the membrane while larger polysulfides are blocked. When integrated into lithium-sulfur cells, PIM membranes proved 500 times more effective at blocking the unwanted crossover of polysulfide ions than conventional membranes.
“In a proof-of-concept demonstration, we showed that our first-generation PIM membrane exhibited unprecedented blocking characteristics that dramatically reduced soluble polysulfide crossover and shuttling at the anode in lithium-sulfur batteries, even when the sulfur cathodes were prepared as flowable energy-dense fluids,” explained Brett Helms, a Berkeley Lab staff scientist with the Molecular Foundry and principal investigator with the Joint Center for Energy Storage Research (JCESR), who led this research. “The blocking ability of our PIM membranes led to significantly longer-lasting batteries and other performance improvements.”
Helms is the corresponding author of a paper describing this research that’s been published in the journal Nano Letters. The paper is entitled ‘Polysulfide-Blocking
Microporous Polymer Membrane Tailored for Hybrid Li-Sulfur Flow Batteries’. Co-authors are Changyi Li, Ashleigh Ward, Sean Doris, Tod Pascal and David Prendergast.
“Guided by theoretical calculations, we developed and applied PIMs as a membrane platform for achieving high-flux, ion-selective transport in non-aqueous
electrolytes,” said Helms. “The PIMs are synthesized in a single step and easily cast into large-area sheets with well-controlled pore structure and pore chemistry.”

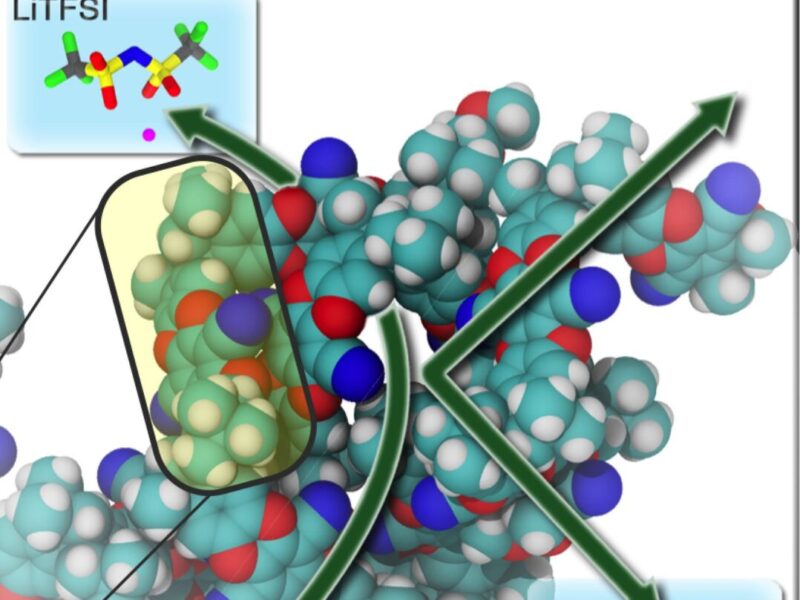

Key to the micropore architecture of PIMs are two unique molecular features: the chemical bonds along their backbone are non-rotational; and rigid sharp bends are incorporated at regular intervals into at least one of the constituent monomers along their polymer chain. As a result of these two features, PIMs are amorphous but still exhibit high intrinsic microporosity and high surface area.
“Given that the pore size, pore chemistry and overall porosity for PIM membranes are tunable using molecular engineering and polymer processing, the membrane’s transport characteristics can be tailored to suit a broad spectrum of electrochemical devices, from batteries to fuel cells,” said Helms. “Our successful proof-of-concept demonstration suggests that a revolution in ion-transporting membranes is within reach.”
