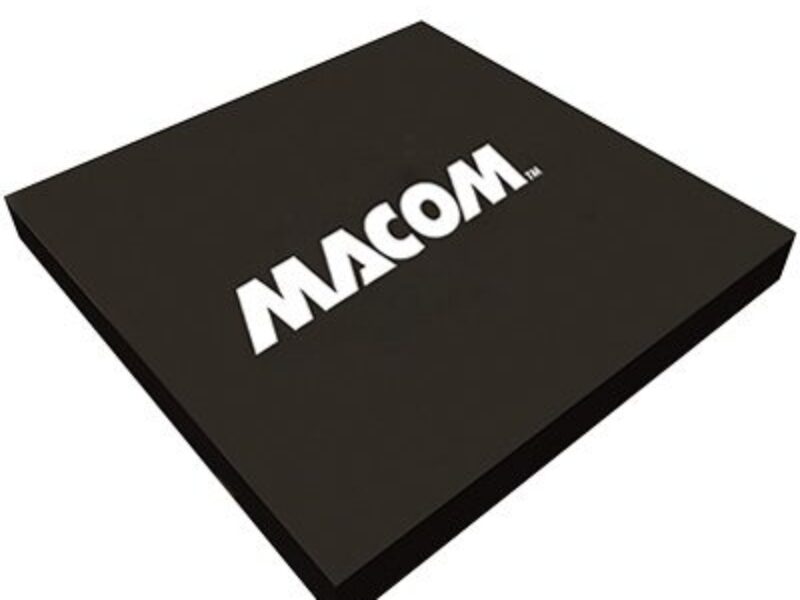

DC-50 GHz wideband amplifier

DC-50 GHz wideband amplifier

New Products |
By eeNews Europe



The wideband amplifier provides customers with 50 Ohms matching and typical return losses better than 15 dB. This user friendly amplifier is a high-performance, low noise product for customers seeking a very wideband, fully matched amplifier solution.

Features of the MAAM-011109-DIE include gate bias adjust to change current setting for power or temperature, gain trim control that allows 15 dB of gain control (0 to -1 V) and a temperature-compensated power detector that provides a DC voltage in relation to the output power.

This die product features gold-plated contact pads on its backside and a size of 1.97 x 1.30 x 0.1 mm.

www.macom.com
