By Jean-Pierre Joosting

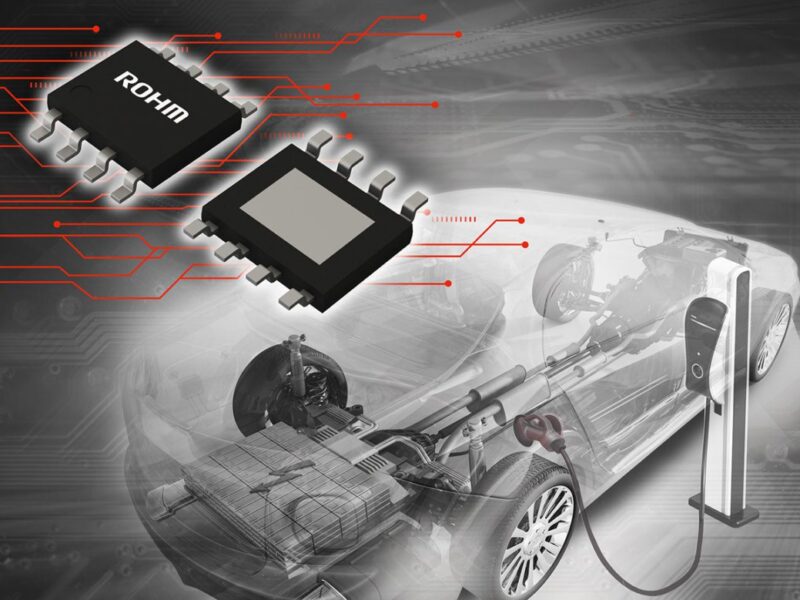

ROHM has recently developed an isolated flyback DC-DC converter, designated BD7Fx05EFJ-C, that are optimized for gate driver power supplies in xEV applications such as electric compressors, and PTC heaters.

In recent years, xEVs such as hybrid and electric vehicles have become increasingly popular as the industry moves towards achieving a sustainable society. xEVs, which primarily use electricity as their energy source, are equipped with unique applications such as, electric compressors for AC, and PTC heaters to raise the cabin temperature. As these applications are driven by high voltages, it is necessary to isolate the primary circuit that includes the battery from the secondary circuit comprised of the motor and other systems to ensure safety. However, in addition to issues such as larger mounting area and power consumption, conventional isolated circuit configurations require considerable noise countermeasures for switching frequencies that vary with output current.

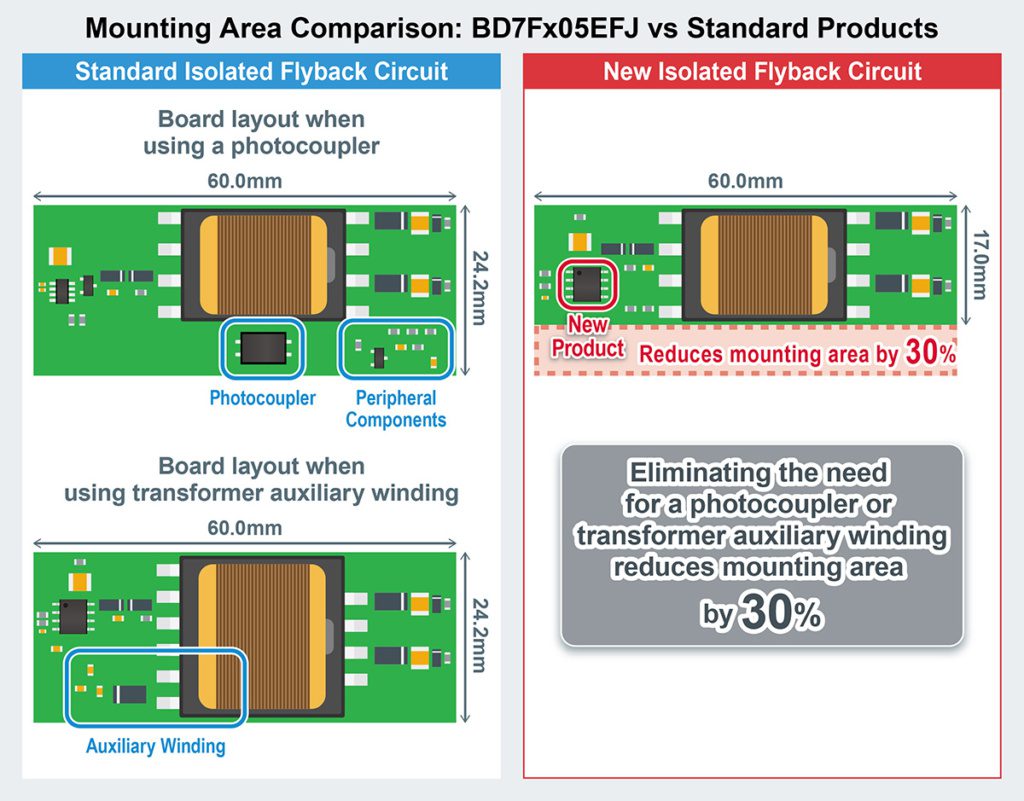

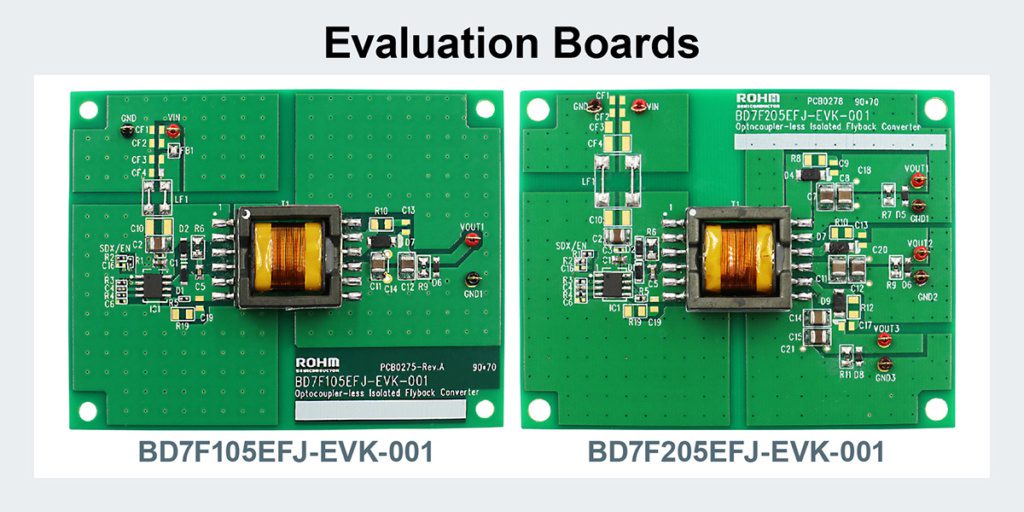

The BD7F105EFJ-C, BD7F205EFJ-C converters use a circuit configuration that achieves stable switching frequency characteristics without requiring a photocoupler, decreasing application size together with workload for noise design countermeasure. Leveraging superior analog design technology allows the BD7Fx05EFJ-C DC-DC converter to eliminate the need for photocouplers, transformer auxiliary windings, and peripheral components conventionally necessary to detect secondary-side voltage and current. On top, next to solving issues with photocouplers, such as large power consumption, fluctuating detection accuracy due to temperature, and deterioration over time, ROHM has also achieved greater miniaturization by reducing the number of components. As a result, it is possible to reduce the number of components — including the photocoupler — used for current detection by 10 (equivalent to a board area of 30%) compared to general isolated flyback power supply circuits

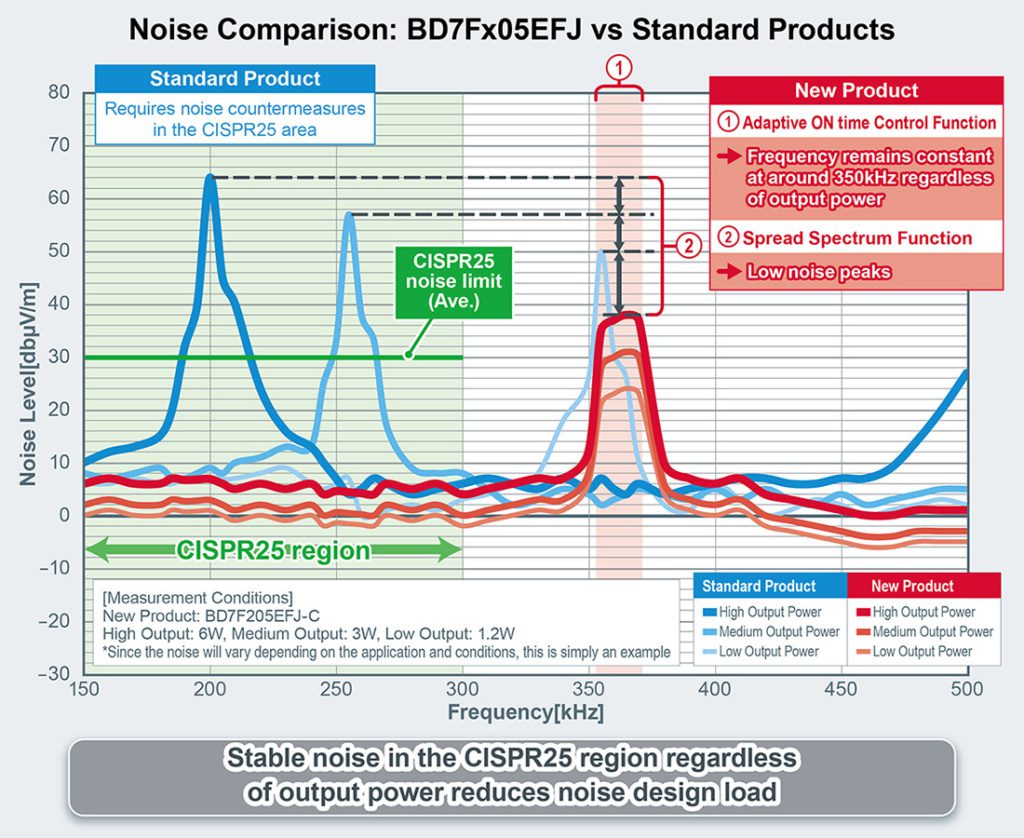

The BD7Fx05EFJ-C DC-DC converter is also equipped with an adaptive ON-time control function that fixes the switching ON time, ensuring a stable frequency of around 350 kHz regardless of output power. To be compliant with the CISPR25 automotive EMC standard requires considerable noise design in the frequency range from 150 kHz to 300 kHz, but as theses new converters do not fall within this band, noise countermeasures can be greatly simplified. This, together with a spread spectrum function that minimizes radiated noise, contributes to reducing the number of efforts for noise design.

Going forward, ROHM will continue to develop products that contribute to greater miniaturization and lower noise by leveraging its strength in analog technology, helping to achieve a sustainable society.

In addition to reducing the number of components and person-hours required for noise countermeasures, the BD7Fx05EFJ-C DC-DC converter improves application reliability by incorporating multiple protection circuits along with a function that stabilizes the output voltage.

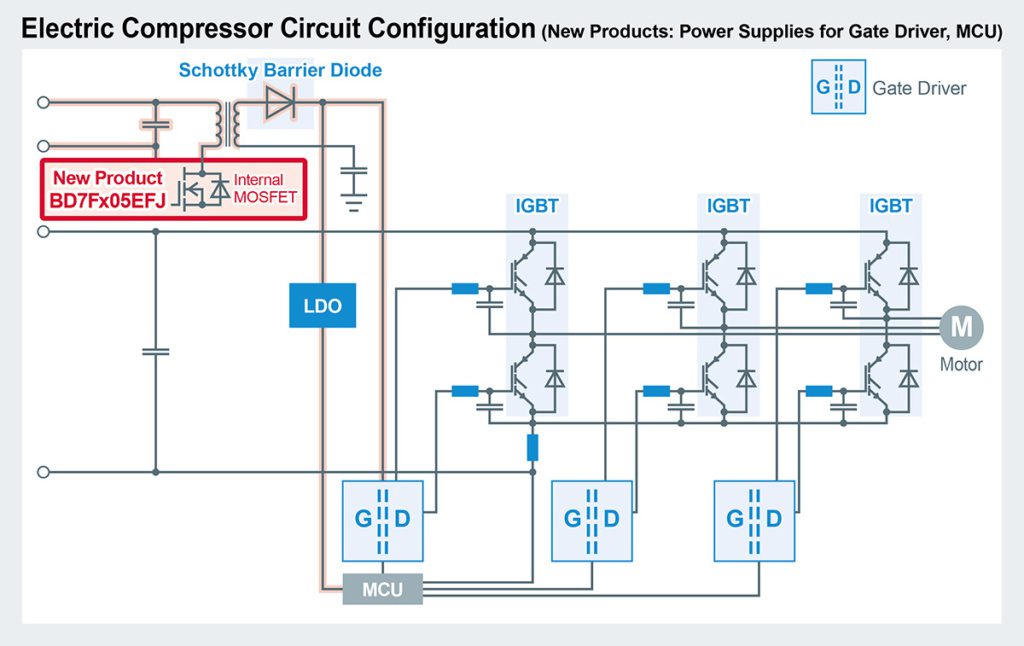

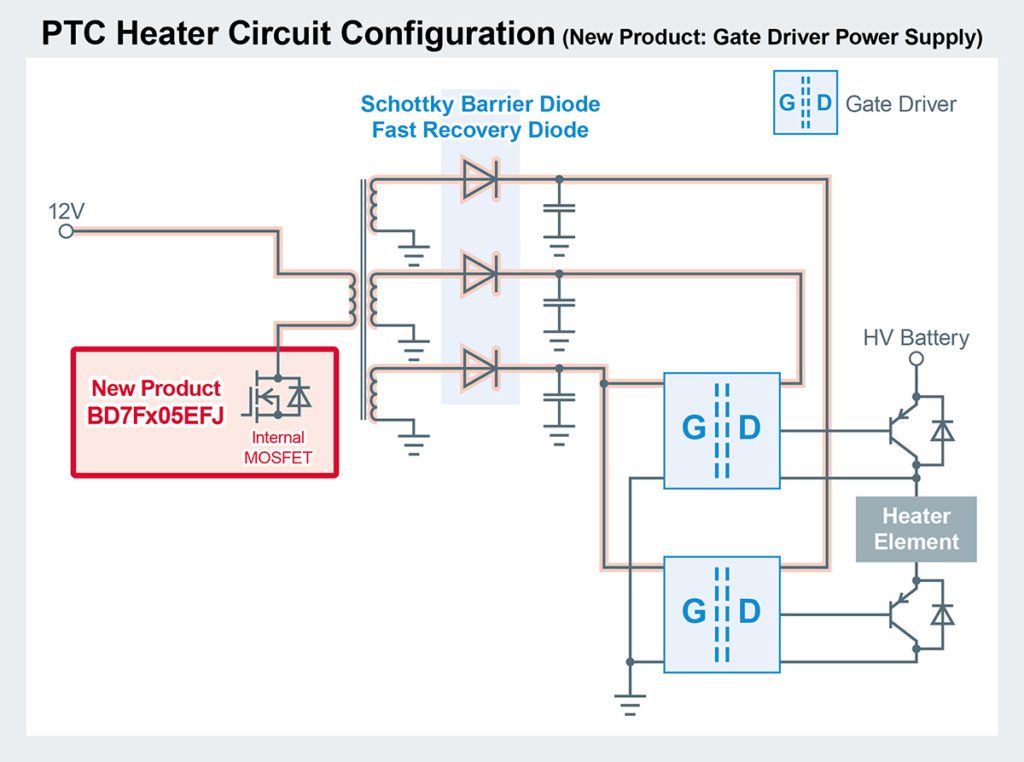

The new DC-DC converter IC is ideal for gate driver power supplies that must be isolated from the battery for safety. These include automotive use in electric compressors, PTC heaters, and inverters as well as in industrial applications such as power supplies, PLCs and inverters.
