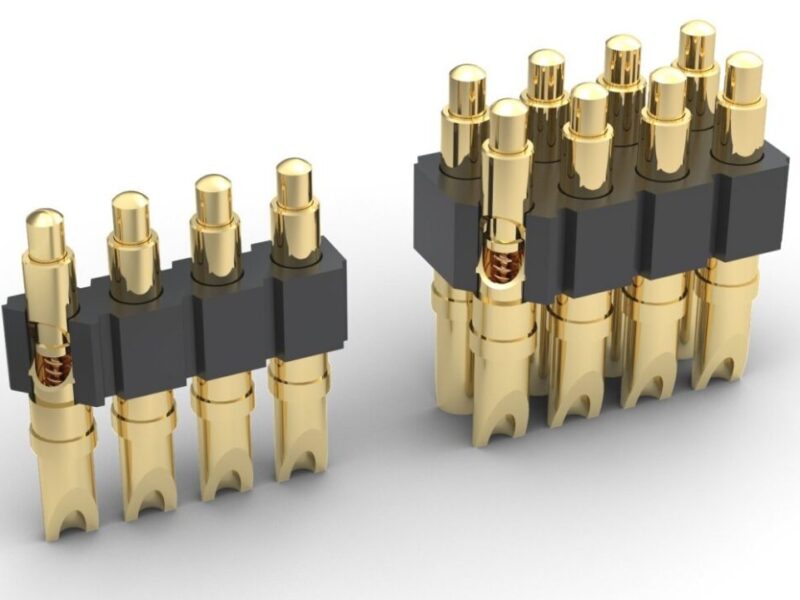

Double row solder cup spring pin header strips
Each spring pin provides 0.6985mm of mid-stroke compression (1.397mm maximum compression) and is rated for one million cycles. Uniform orientation of the solder cups makes it easy to solder cables or discrete wires to the spring pins by eliminating the need to manipulate the wires or the connector to solder each wire. The solder cup is sized to accommodate up to a 22 AWG wire. Once the wires are securely soldered in the cups, the wired spring-loaded assembly offers an excellent interface solution for discreet wire to board, cable to board or cable to cable applications where tolerance stack ups demand the versatility and forgiveness of a spring-loaded connection.
Gold-plated brass components and beryllium copper springs ensure the highest conductivity, corrosion resistance and durability. The 824 and 826 series headers feature spring-loaded pins rated at 3A maximum (2A continuous use), high temperature Nylon 46 insulators and are available from 2-64 positions single row and 4-64 double row. A line of target connectors is also available, to act as the mating surface for the spring-loaded plungers. Target connectors are available in through-hole and SMT (319 series single row, 419 series double row), right angle (399…10-008 single row, 499…10-008 double row) and with solder cup terminations for cable to cable applications (330 series single row, 430 series double row.)
