By Nick Flaherty

Halo Microelectronics has launched an I2C single-cell switch-mode battery charger with two LDOs.

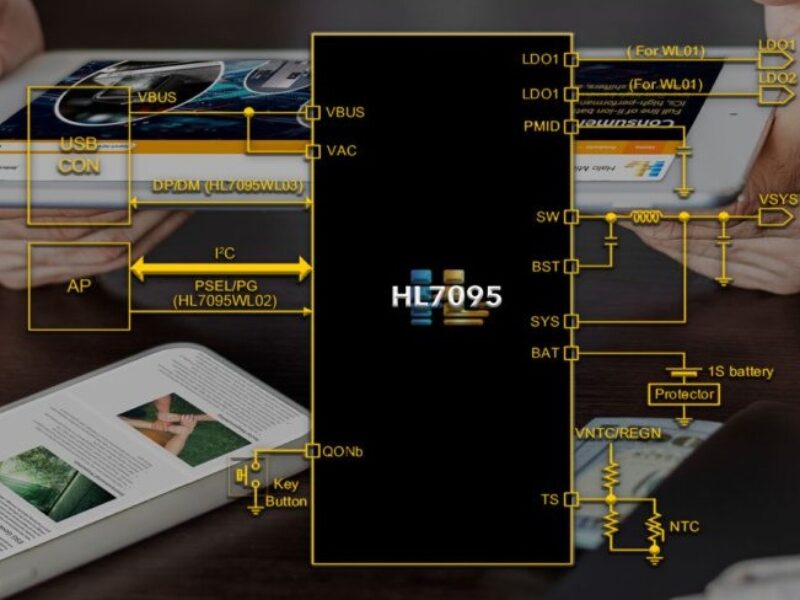

The HL7095 is an advanced I2C interface switch-mode Li-ion single cell charger featuring power FETs, power-path management, and a reverse boost function. It is aimed at a wide range of devices from wearables, smartphones and tablet computing to power banks and other portable electronics.

The single cell charger is compatible with both single-cell and multiple-cell in parallel Li-ion and Li-polymer batteries. The switch-mode operation and low-resistance power path ensure optimal charging, discharging, and boost efficiency, shortening battery charging time and prolonging battery life during discharge.

The HL7095 supports various input sources, such as standard USB host ports, USB charging ports, and AC-DC adapters. It accepts input voltages ranging from 3.9V to 12V, enabling it to power up the system rail without the need for a battery.

The device can autonomously manage the full charging cycle of a Li-ion battery, with or without an I2C host. It efficiently detects battery voltage and follows four charging phases: trickle charge, pre-charge, constant current, and constant voltage.

The single cell charger offers enhanced convenience and versatility with its reverse boost function, providing a programmable 4V to 10.3V output at VBUS/PMID. This supports USB OTG mode and accessory mode, enabling the battery to supply up to 1A load current. Furthermore, it features two LDOs to power accessories like headsets or LEDs under the accessory mode, using either VBUS via QRB or directly from PMID through reverse boost.

“The HL7095 is a configurable battery management IC that integrates a switching charger, a reverse boost, and two LDOs,” said David Nam, CEO of Halo Microelectronics. “Its low quiescent current and compact solution size make the HL7095 well suited for both smartphone as well as wearable applications, making it a highly integrated yet versatile charging solution,” he added.
