Halo Microelectronics has launched its HL7132D, a dual-phase 30 W charge pump with 1:2 reverse boost mode.

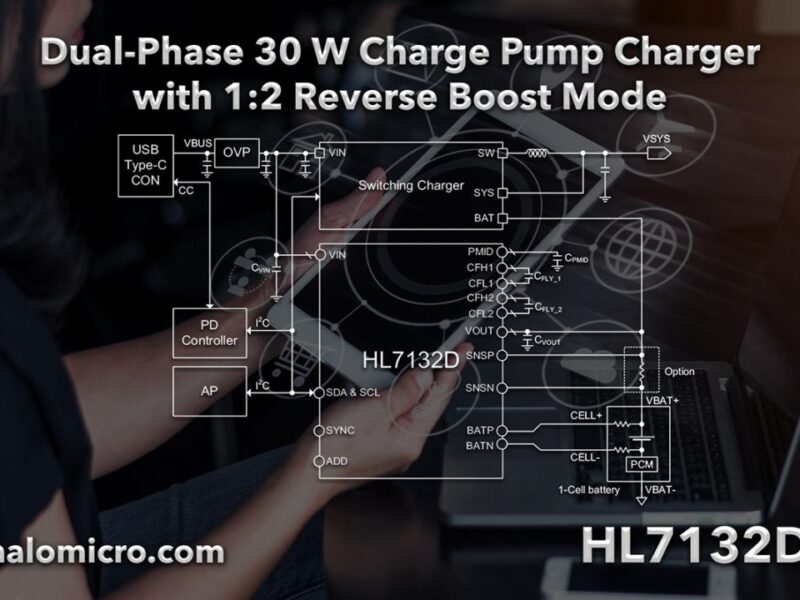

The HL7132D is a low-voltage fast direct charger for 1-cell Li-ion and Li-polymer batteries. The device integrates a dual-phase switched capacitive converter and reverse blocking MOSFET (QRB FET) while achieving over 97 percent efficiency at 4.5 V output, and 4 A current, with one 22µF flying capacitor per phase at FSW of 1.1 MHz.

The HL7132D features two different switching modes — a 2:1 charge pump mode that allows the output voltage (VOUT) to be around half of the input voltage (VIN), and the output current to be doubled the input current and a 1:2 reverse charge pump mode that allows a voltage at VIN double the VOUT voltage.

Furthermore, the device provides constant current (CC) and constant voltage (CV) regulations through controlling QBR FET for safe charging operation in a 2:1 charge pump mode. The CC regulation is closely monitored through a close loop of the input current sensing or battery current sensing and the CV regulation is controlled through a close loop of the battery voltage sensing. To further enhance safety, the device is equipped with a thermal regulation loop that kicks in if the CC/CV loop results in overheating during the operation in 2:1 charge pump mode.

The HL7132D is available in a 2.95- x 2.6-mm, 42-bump WLCSP, and is ideal for smartphones, tablet computing, and IoT devices.

“The HL7132D is posed to become yet another cutting-edge addition to our extensive family of dual-phase charge-pumps,” said David Nam, CEO of Halo Microelectronics. “Offering both a 2:1 charge pump and a 1:2 reverse charge pump, along with a comprehensive range of safety features, Halo Microelectronics is dedicated to pursuing the boundaries of innovation and revolutionizing the consumer electronics and IoT industry.”
