Efficient 100-V driver simplifies GaN FET implementation

Efficient 100-V driver simplifies GaN FET implementation

New Products |
By Jean-Pierre Joosting

Analog Devices has made available a 100-V half-bridge GaN driver that simplifies the implementation of GaN FETs, while providing robust gate control, high frequency switching, and increased system efficiency.

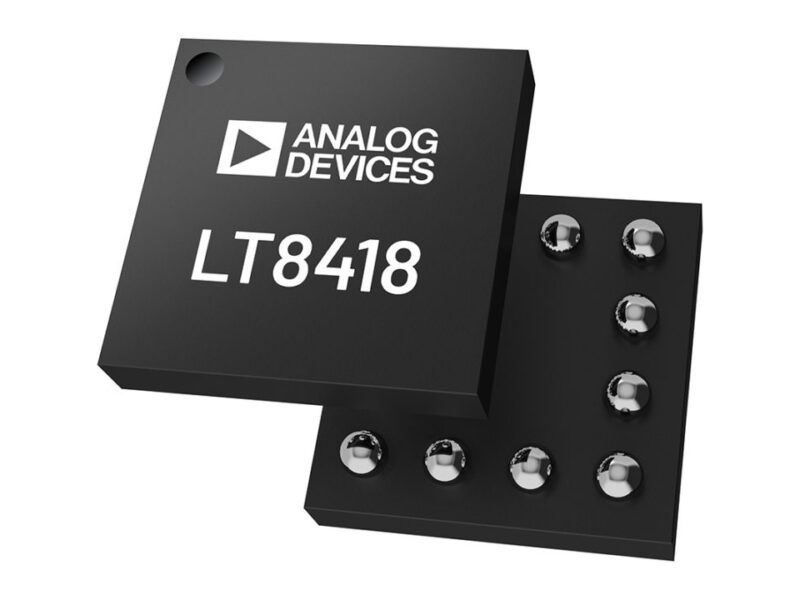

Integrating top and bottom driver stages, driver logic control, and protections, the new LT8418 GaN driver can be configured into synchronous half-bridge, full-bridge topologies, or buck, boost, and buck-boost topologies. The device provides strong current sourcing/sinking capability with 0.6 Ω pull-up and 0.2 Ω pull-down resistance for driving a variety of GaN FETs. It also integrates a smart integrated bootstrap switch to generate a balanced bootstrap voltage from VCC with a minimum dropout voltage.

The LT8418 GaN driver delivers split gate drivers to adjust the turn-on and turn-off slew rates of GaN FETs to suppress ringing and optimise EMI performance. All driver inputs and outputs have default low-state to prevent GaN FETs from false turn-on. The pulsed width modulation inputs of the LT8418, INT and INB, are independent and TTL logic compatible for precise control. The LT8418 performs with a fast propagation delay of 10ns and maintains a delay matching of 1.5ns between the top and bottom channels, making it suitable for high-frequency DC-DC converters, motor drivers, and class-D audio amplifiers. In addition, the LT8418 employs the WLCSP package to minimise parasitic inductance, enabling its wide use in high-performance and high-power density applications.

Key product specifications of the LT8418 GaN driver include:

  • Split 0.6 Ω pull-up and 0.2 Ω pull-down gate drivers for adjustable turn on/off behaviour.
  • 4 A peak source, 8 A peak sink current capability.
  • Lower propagation delay of 10 ns typical.
  • Propagation delay matching of 1.5 ns typical.
  • High dv/dt immunity up to 50 V/ns.
  • Under-Voltage (VCC and BST) and Over-Voltage (VCC) lockout protections.
  • Smart integrated bootstrap switch will regulate the HS gate drive voltage to operate within the SOA of the GaN FETs.
