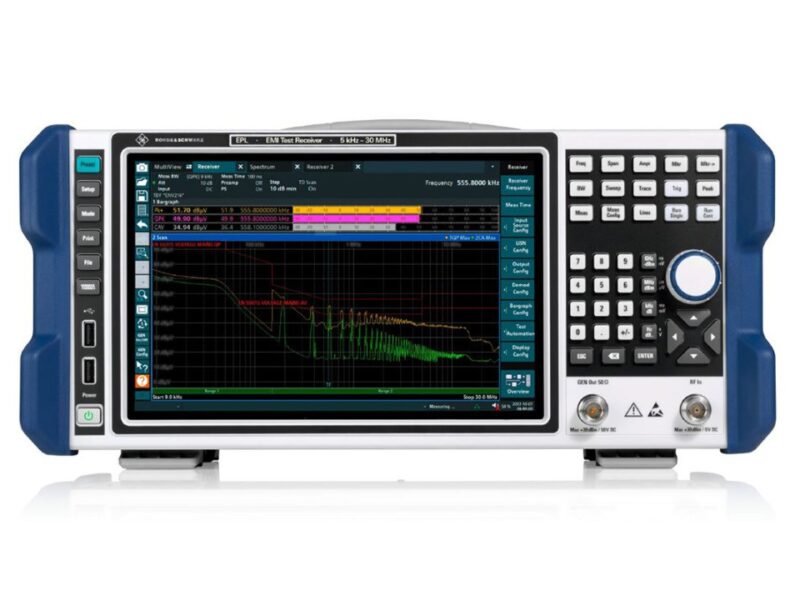

The EPL1000 EMI test receiver from Rohde & Schwarz provides reliable certification measurements with minimum test times. It is CISPR 16-1-1 compliant and suitable for certification measurements. The instrument also reduces uncertainty in pre-compliance measurement tasks. The very fast time domain scan lets the EPL1000 check all frequencies in CISPR bands A or B in a single shot for quick and seamless measurements over extended periods of time whenever desired or necessary. A user friendly GUI helps EMC engineers quickly find infrequent emissions and gain a good overview. Reproducible and standard compliant test results enable ensure high product quality.
The EPL1000 has a pulse protected input. An autoranging function prevents the overloading of the signal processing chain to ensure correct measurement results. Built-in preselection ensures a high dynamic range and enables the acquisition of short pulses. For detailed signal analysis, the EPL1000 EMI test receiver has spectrogram and IF analysis functions. Automation simplifies measurements and ensures exact reproducibility of test sequences. For example, all lines connected to a Rohde & Schwarz LISN can be checked for CISPR bands A and B at the push of a button. Results are automatically compared with configured limit values and the EPL1000 displays the result for the entire measurement as PASS/FAIL. The integrated report generator allows the result and measurement details to be easily saved and printed.
The additional spectrum analyzer functions help with a detailed EMI analysis. An optional integrated continuous wave signal generator with a tracking generator function characterizes used accessories and cables without the need to use an external signal generator. In addition to the standard mains supply, the compact EMI test receiver can be run on 12/24 V DC or battery, making it very flexible and portable.
The EPL1000 is ideal for conducted voltage and current emission measurements. The frequency range to 30 MHz is ideal for testing commercial products against ISO, EN, CISPR and FCC standards. The EMI test receiver supports product certification, precertification, measurements during product development phases and market surveillance.
The EPL1000 can be used with the ELEKTRA EMC test software. ELEKTRA helps minimize test times and simplifies configuring test systems and running test procedures in line with the EMC standards. The instrument speeds up test execution and provides comprehensive and customizable test reports.
