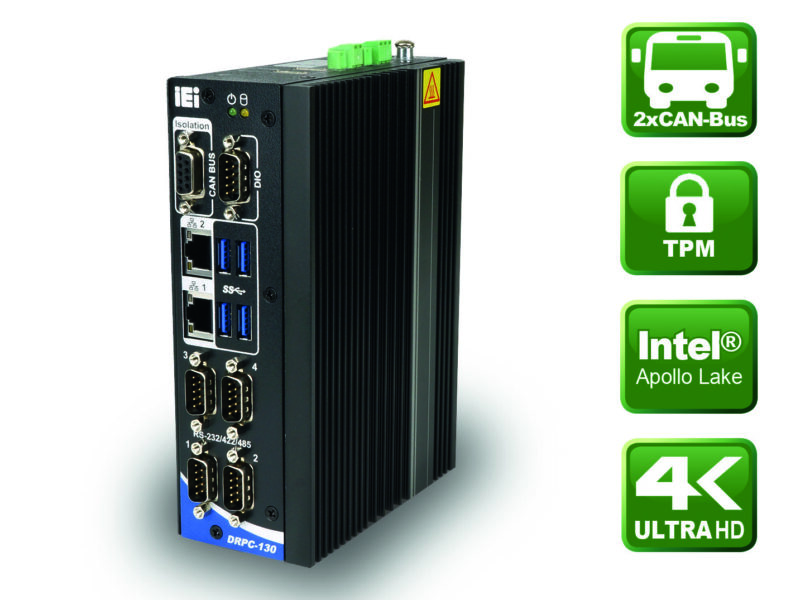

Fanless DIN-rail embedded PC is optimised for control cabinets
The DRPC-130-AL PC’s CAN buses are lead out through a DB-9 connector. The new communications capabilities allow secure data transmission in real time.
Four USB, two GbE, four RS-232/422/485, one 8-bit digital I/O and one DB-9 connector for Dual CAN are available at the front of the IP40 protected housing. The two HDMI 1.4b interfaces offer a resolution of up to 4K UHD and are easily accessible from above. One terminal block supplies the DRPC-130-AL with an input voltage of 12V~24VDC. The other (PS-ON) allows the DIN-Rail Embedded PC to be switched on and off externally. A 2.5″ SATA 6Gb/s drive bay, an mSATA and an eMMC 5.0 slot can easily be equipped with suitable mass storage via the removable side panel.
The DRPC-130-AL is powered by an 14nm Intel Atom dual-core processor and supports a maximum of 8GB DDR3L memory. An integrated SIM slot and a WLAN module can optionally be used for remote control within the network. DRPC-130-AL is robust, vibration resistant and can operate in temperatures from -20°C to 60°C.
More information
https://www.icp-deutschland.de/en/home/
