Fast response, high-accuracy linear Hall-effect sensor
Cette publication existe aussi en Français
Current sensors can be classified into three main types: magnetic core-based, coreless magnetic, and shunt resistor-based. Each serves different operating environments and performance requirements. Magnetic current sensors are non-contact devices that utilize linear Hall-effect sensor ICs or other magnetic sensors for field detection.

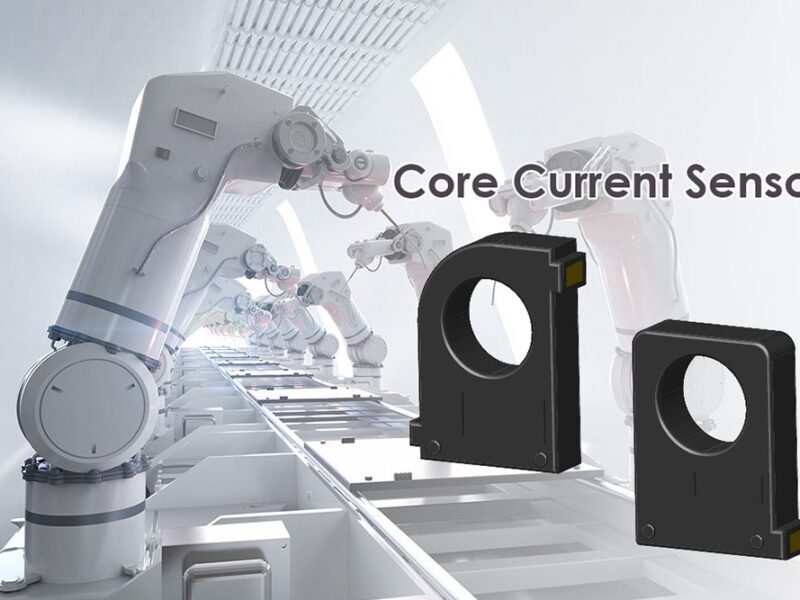

In particular, magnetic core-based current sensors have become essential for applications requiring precise measurements of high currents ranging from hundreds to thousands of amperes, such as in photovoltaic systems, UPS systems, and industrial machine tools. In core-based current sensors, a magnetic sensor IC placed in the gap of a magnetic core measures the magnetic fields generated by current flowing through the conductor. This minimises power loss by maintaining low resistance in the current path. However, using a magnetic core introduces challenges, including higher costs and larger mounting area requirements.
Core current sensor module manufacturers encounter multiple technical challenges: detection delay impacts system response times, noise restricts measurement precision, and variations in magnetic core temperature necessitate complex compensation mechanisms, including arithmetic processing with a microcontroller.
Recent advancements in linear Hall-effect sensor ICs have resulted in microsecond-range response times, such as ABLIC’s S-5611A linear Hall-effect sensor IC, which achieves a response time of 1.25 microseconds. This progress allows for current measurement in high-frequency switching applications typically found in contemporary industrial systems.
Regarding noise performance, these ICs typically achieve input magnetic flux density, known as noise voltage levels around 0.09μT/√Hz. These noise characteristics facilitate precise current measurements in applications that require accurate current control to ensure system efficiency and reliability.
These ICs incorporate adaptive performance features such as programmable frequency bandwidths (100 kHz to 400 kHz) and magnetic sensitivity adjustments (6 to 180 V/T with 0.3% step resolution). These features enable engineers to optimise response time and noise performance for specific applications.
These ICs incorporate adaptive performance features, including programmable frequency bandwidths (100kHz to 400kHz) and magnetic sensitivity adjustments (6 to 180 V/T with 0.3% step resolution). This allows engineers to optimise response time and noise performance for specific applications.
These technological advancements in linear Hall-effect sensor ICs provide improved capabilities for core current sensor module manufacturers. By incorporating temperature compensation and programmable parameters, manufacturers can now develop simpler, more accurate, and reliable designs optimised for various applications.
The ability to fine-tune sensor characteristics through programmable frequency bandwidth and sensitivity settings allows for flexible designs that can meet multiple application needs. As industrial applications increasingly demand higher-performance current sensing solutions, these advances provide module manufacturers with the tools to develop next-generation current sensing solutions.
