Flexible tattoo sensors help measure blood flow under the skin

Flexible tattoo sensors help measure blood flow under the skin

Technology News |
By eeNews Europe



A wearable sensor would provide the equivalent of a round-the-clock video of a person’s blood flow throughout the day. Testing showed that a flexible ‘epidermal electronics’ blood flow monitor developed by an international team led by researchers at the University of Illinois at Urbana-Champaign can measure the blood flow in the outermost 1 to 2 millimeters of skin – even for human bodies in motion. The development promises the potential to create a future wearable device that could continuously measure the blood flow of patients while they go about their daily lives.

“Say you have diabetic patients and want to be able to monitor changes in specific blood vessels continuously for 24 hours a day,” explained Richard Chad Webb, a Ph.D. candidate in materials science and engineering at the University of Illinois. “There’s no way of doing that today.”

The University of Illinois team developed the wearable device in cooperation with the U.S. National Institutes of Health and a broader group of U.S. and Chinese researchers. Webb was the lead author of a paper detailing the group’s work; it was published in the 30 Oct 2015 online issue of the journal Science Advances.

Most state-of-the-art devices for measuring blood flow use optical imaging techniques that require patients to stay still during the process. Webb and his colleagues turned to flexible electronics technology to find a possible wearable solution. (One of the study’s coauthors is John Rogers, a materials scientist and engineer at the University of Illinois whose lab has pioneered many examples of biocompatible flexible electronics.)

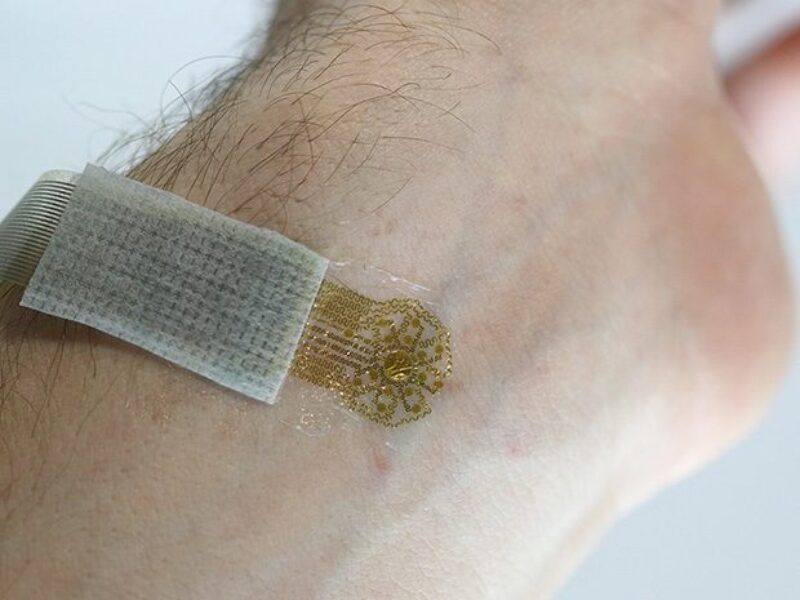

Researchers developed a lightweight, ultra-thin device that sits on top of the skin without distorting the blood flow it seeks to measure. The device clings tightly to the skin due to van der Waals forces which are the weak attractive forces between molecules. The attraction prevents any motion between the sensor and skin that could affect the accuracy of readings. As a backup, medical tape can ensure the device stays put.

Image: University of Illinois at Urbana-Champaign

“Fundamentally, what we were trying to do was remove the relative motion between the body and detector system,” said Webb. “That allows you to get to same clinical information [as state-of-the-art optical imaging devices] without the restriction of immobilizing somebody.”


Webb and his colleagues built the device from ultra-thin layers of silicon, gold, chromium, and copper supported by silicone. Most of the sensor’s bulk comes from a 40-micrometer-thick layer of silicone. Each of the other layers has a thickness of just tens or hundreds of nanometers.

The wearable gadget detects differences in heat patterns caused by the blood flow beneath the skin. A 1.5-millimeter thermal actuator within the device heats up by 6 to 7 degrees Celsius to provide a thermal background for the measurements. That sounds like a significant temperature change for something sitting against human skin, but it’s below the threshold of skin sensitivity. The 3.5 milliwatts per square millimeter of thermal energy entering the skin is so minuscule that someone wearing the device wouldn’t notice the difference.

Two rings of sensors around the actuator detect the temperature differences in the heat patterns with a precision within 0.01 degrees Celsius. Last but not least, computer algorithms help interpret the heat pattern differences as blood flow rate.

Testing with the wearable device placed above the wrist veins of human volunteers showed how it could work in practice. Blood flow measurements were taken as the human subjects stood motionless for five minutes, as they stepped up and down on an aerobic stepper for three minutes, and, finally, as they lied down on their backs. Researchers also compared the wearable device’s results with the state-of-the-art optical imagers to ensure that the measurements were reasonably accurate.

There’s still a ways to go before this experimental device could lead to a commercial wearable. The researchers still need to figure out how to make a version complete with a self-contained power source and components that would let it wirelessly transmit data to a laptop or other device, explained Webb.
