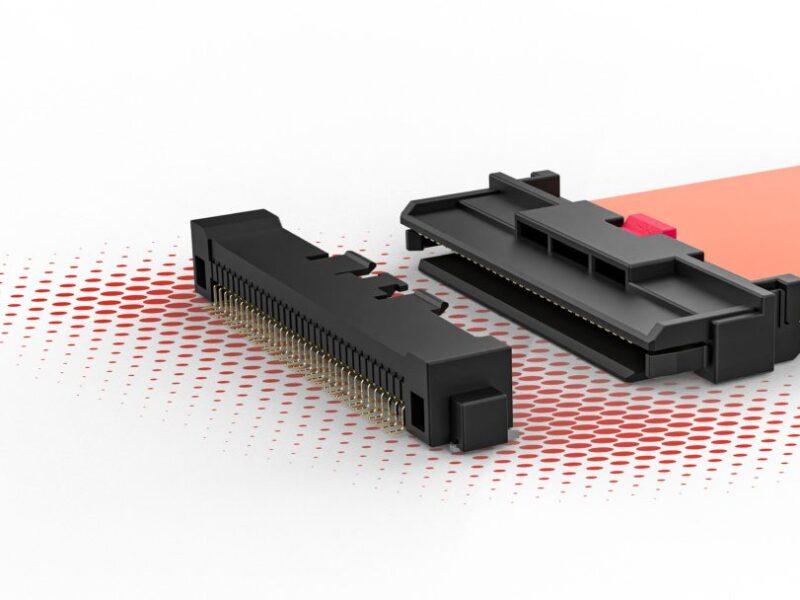

Fourth generation of Y-lock cell contacting connector

Fourth generation of Y-lock cell contacting connector

New Products |
By Nick Flaherty

Yamaichi Electronics has launched its fourth generation Y-Lock Pullforce connector system for battery management or cell contacting systems in the automotive industry.

The Pullforce System (Non-ZIF) of the Y-Lock features an intelligent One-Push locking mechanism, which is available in different versions. Here, the flexible flat cable (FFC) or the flexible printed circuit board (FPC) is inserted into the connector using the pre-assembled stiffener. In the V3 and V4 versions, the stiffener automatically engages in two steps, first via lateral locking hooks and in the next step via the double front locking.

Guide pins on the system support blind plugging and contacting for applications that are difficult to access or where space is limited. The connection is disconnected by simply pulling out the FFC/FPC – mechanical actuation of the connector is not required.

The double locking, blind mating function and the profile of 3.9mm mean the system is suitable for battery systems where the FFC/FPC is not under voltage after disconnection from the connector. The Y-Lock system has been qualified based on LV214.

V4 adds an optional Connector Position Assurance (CPA) that provides additional locking of the cable side with the connector. The CPA is located on the stiffener side and latches with the connector when actuated. The FFC/FPC can only be released after the CPA has been unlocked. Of course, the V4 also has the front and side locking with pullforce function, so that secure locking is ensured even without CPA.

Another advantage of Y-Lock V4 is the integrated contact protection in the contact area of the FFC/FPC. This protection ensures that the FFC/FPC is covered by the stiffener from all four sides and that there is no danger if the cable is still under voltage after it has been released. The contact distances of e.g., 1.3 mm or 1.8 mm can be individually adapted to the requirements for clearance and creepage distances and all versions are available with different pitches and a range of pin counts.
