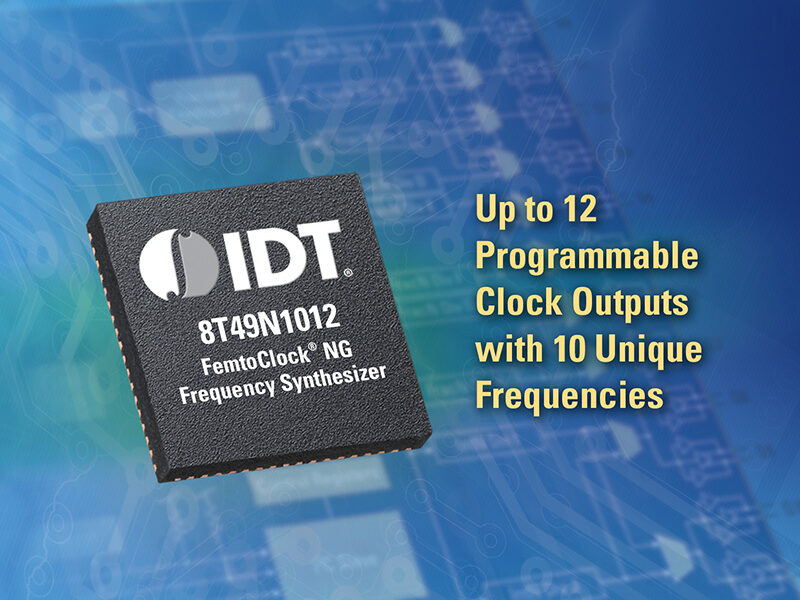

Frequency synthesizer provides 12 configurable clock outputs
With an industry-first eight fractional and two integer output dividers, the synthesizer aids design engineers in resolving complex timing requirements while hitting important performance parameters – all in a single chip.
The synthesizert is ideal for advanced enterprise-class systems in networking and communications, as well as printing, computing, instrumentation, audio, video, backplane and USB applications. The flexibility and cost effectiveness of the device alone makes it ideal for virtually any general timing requirement.
“Clock trees generate and control the signals sent throughout today’s advanced electronic systems, and it is essential that these timing devices deliver highly synchronized top-tier performance,” said Kris Rausch, general manager of IDT’s Multi-Market Timing Division. “With the flexibility built into the 8T49N1012, our customers can use a single device to generate essentially any clock needed for most applications, minimizing board space occupation, BOM and component count. The in-system configurability of this 12-output clock generator allows it to be portable from one design to the next, further reducing cost of ownership and time to market.”
The 8T49N1012 is programmable through an I2C interface and also supports master capability, allowing the register configuration to be read from an external EEPROM. This capability is beneficial in providing a means for system quick recovery upon resolution of a general system fault. In addition, programmable skew control on all eight fractional outputs allows for easy in-circuit trace delay adjustments.
IDT’s Timing Commander™ software tool enables fast and easy reconfiguration of the device, which aids engineers when dealing with overall design iterations.
The chip has a total of 12 differential or 2×12 in-phase LVCMOS clocks. Fractional output dividers provide up to eight completely independent frequencies with better than 1ppb accuracy, and two integer output dividers provide an additional four outputs.
The chip boasts phase jitter performance of less than 500 fs RMS phase jitter (12 kHz to 20 MHz) and output frequencies from 8 kHz up to 1 GHz differential, 250 MHz LVCMOS. Flexible input options comprise 10 to 40 MHz fundamental mode crystal and a reference input from 10 to 600 MHz.
Further features include skew control on all fractional output dividers that allow for adjustments in steps as small as 16ps; Loss of Lock and Loss of Signal status outputs; and bypass clock paths and Reference Output for system tests.
