Full body motion-capture and gesture recognition system
Together with its jointly run research partner, the Motion Lab, Movea has developed a MEMS sensor-based, full body motion capture system, enabling a computerized avatar to reproduce a person’s body movements in real-time, with an accuracy that matches the efficiency of more expensive video systems.
“By attaching 9 MotionPods on a person’s body limbs, our system can track any movement in 3D to a fine degree of accuracy. We have developed a biomechanical model taking into account human constraints such as the fact that a knee can only bend forward,” explained Bruno Flament, Movea CTO. “This model therefore can reproduce human body motion realistically and accurately.”
In addition to tracking motion in real time, Movea has developed expertise in live gesture recognition. The full body positional information and motion is compared in real-time against a library of full body gestures. For example, in the case of a yoga or martial arts application, it can help guide the user into the correct position. For an avatar in a game, Movea’s technology speeds up the game action such as taking an arrow out of a quiver and firing it from a bow as the early detection feature recognizes the start of a gesture without having to wait for it to be completed, triggering the game action early and ensure a continuous user experience.
Traditional full body motion capture typically uses dots or balls attached to a suit worn by actors with cameras capturing their movement. This efficient but costly system requires a fully equipped motion capture room, experienced users and sophisticated programs to convert this into usable information controlling computer avatars. The optical-based systems approach, whether it is for movie animation, sports or gaming, limits the field of action as the actor or player needs to remain in a defined Motion Capture Volume without obstacles that would obstruct camera’s vision.
Movea’s solution uses up to 5 MotionPods, which each allow 6 Degrees-of-Freedom (DOF) for full 3D motion capture, and are fitted to key parts of the body to form a Body Area Network (BAN) that enables detailed full body motion to be captured in real time with dynamic accuracy of one degree. These Inertial Measurement Units (IMUs) transmits highly accurate movement information through a 2.4GHz wireless link to a MotionController™ central receiver unit, plugged into a computer via a USB port.

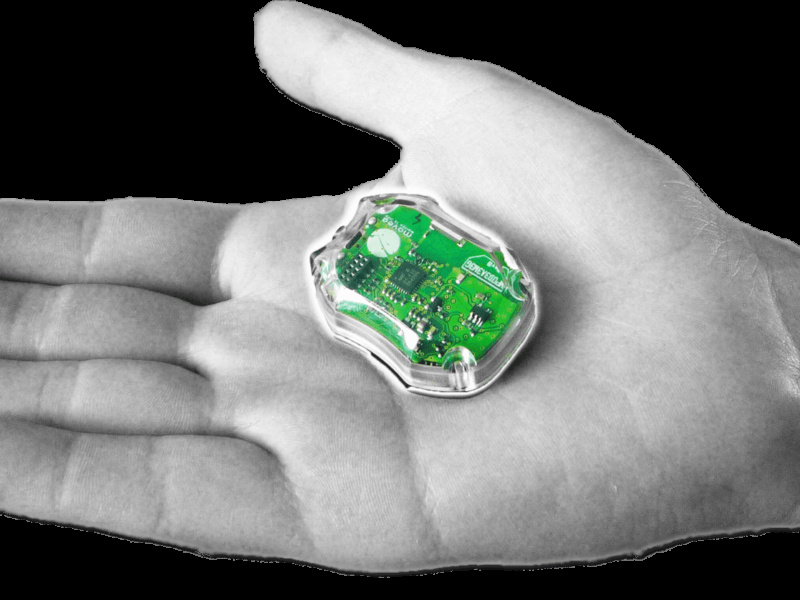

The MotionPod is a patented hardware solution for motion sensing that incorporates a 3-axis accelerometer, a 3-axis gyroscope and a 3-axis magnetometer in fully integrated package complete with software and wireless interface. The MotionPod measures 33x22x15mm and weighs 14g. It is designed to clip onto a bracelet or strap for easy attachment to the body. Each MotionPod has a built-in, 2.4GHz wireless transmitter that uses Movea’s proprietary wireless technology to deliver a range of up to 30m with very low power consumption to maximise battery life, providing up to 8 hours of usage.
Visit Movea at www.movea.com
