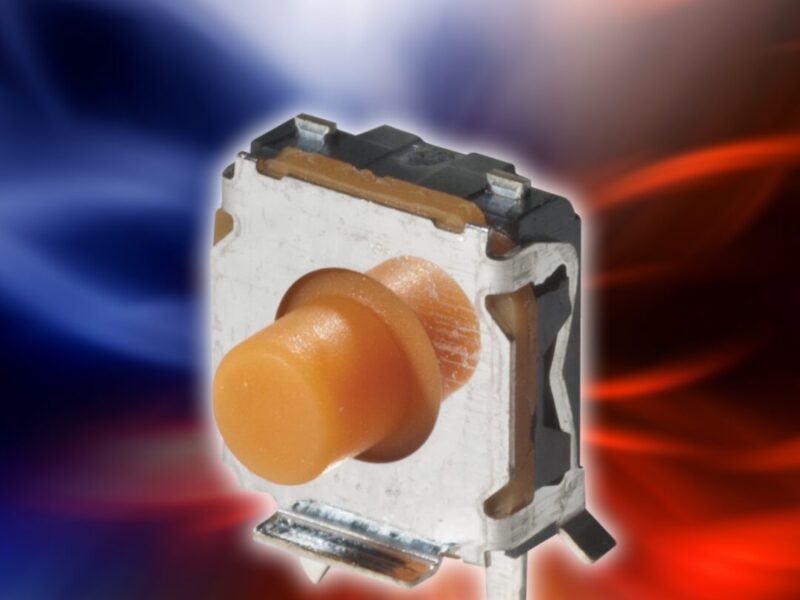

Full SMD side-actuated IP67-sealed tactile switch

Full SMD side-actuated IP67-sealed tactile switch

New Products |
By eeNews Europe

The switches meets specific tactile feedback and sound (click) requirements and is suitable for a number of harsh environment applications, including automotive and industrial, as well as network equipment and telecommunications.
The KSC4V2 Series tactile switches are available with different soft actuators, including silicon and EPDM, to meet haptic requirements of the manufacturers. The SPST momentary switches deliver positive tactile feeling with an operating force of 1N to 5N. Featuring gold or silver contacts, with an operating temperature range of -40ºC to +125ºC, the KSC4V2 Series switches are constructed with a specific top plate for soldering onto the PCB, preventing coplanarity issues, and shear resistance is easily handled by the addition of a back support. The devices are available in tape and reel packing and are compatible for automated assembly processes.
