Researchers at UCLA say they have developed the technology for a handheld lab kit that could significantly increase the speed and volume of disease testing, while reducing the costs and usage of scarce supplies. Using swarms of pinhead-sized magnets, the handheld, all-in-one diagnostic lab kit is capable of fully automated multiplexed and pooled testing.
The automated tests, say the researchers, can be easily manufactured, deployed and performed timely at a doctor’s office, health clinic or at mass testing sites in airports and schools at the onset of any major infectious disease. In a paper on the project, the researchers outlined how the lab kit works and included findings from a clinical study with test samples from individuals who experienced COVID-19 symptoms.
More than 100 test results using the lab kit were compared to the same samples tested for COVID-19 using polymerase chain reaction (PCR)-based molecular diagnostics performed as part of UCLA Health’s routine clinical care.
“Our handheld lab technology could help overcome some of the barriers of scarcity and access to tests, especially early in a pandemic, when it is most crucial to control disease spread,” says associate professor Sam Emaminejad of electrical and computer engineering, who also holds a faculty appointment in bioengineering. “And beyond its potential to address issues of short supplies and high demand, it could be broadly adapted to test for many types of diseases in field and with lab-grade quality.”

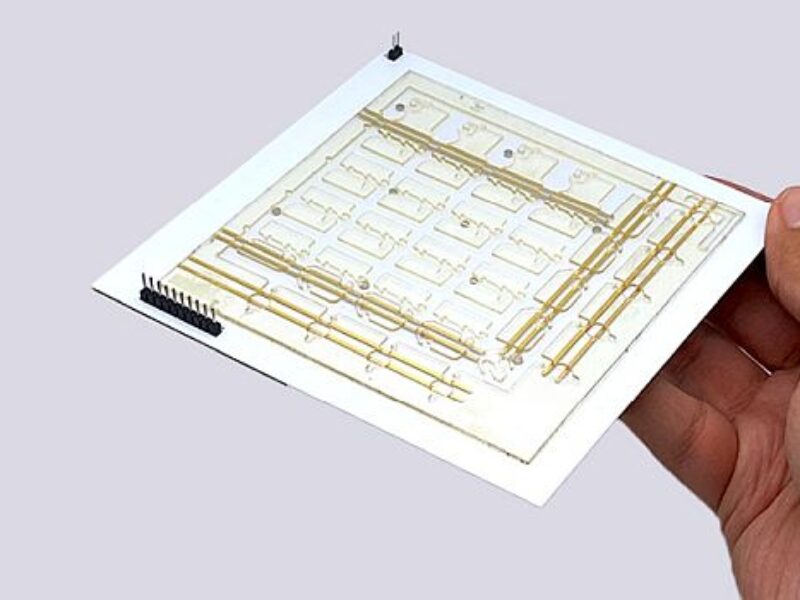

Using a circuit board that controls a set of movable, 1-millimeter-sized magnetic discs known as “ferrobots” to transport samples through the diagnostic workflow of a nucleic acid amplification test (NAAT), the researchers’ ultra-sensitive lab kit was able to detect the presence of genetic material from a virus — in this case, SARS-CoV-2 that causes COVID-19. The steps to separate, sort, mix and amplify testing samples are all automated and performed at a miniaturized level inside the kit.
“This platform’s compact design and automated handling of samples enable easy implementations of pooled testing where you can test dozens of patient samples at the same time, and all with the same materials it currently takes to test just one patient,” says UCLA Samueli School of Engineering professor Dino Di Carlo of bioengineering, who holds UCLA’s Armond and Elena Hairapetian Chair in Engineering and Medicine. “For example, you could test students in an entire college residence hall with just a few dozen test kits.”
By designing the kit for pooled testing, the system requires much lower amounts of reagent chemicals than those needed for testing the samples individually. Up to 16 samples were combined and tested at once in the team’s study. If the pooled test showed a positive result, subsequent tests would automatically take place within the same platform until the actual positive samples were identified.
The entire process took between 30 to 60 minutes, depending on whether there were positive samples. Thanks to the technology’s assay miniaturization and pooled-testing capabilities, say the researchers, the chemical reagent costs could be reduced by 10 to 300 times.
Aside from being able to test for several diseases simultaneously, the platform also offers precision and robust automation. For example, in a pooled-testing with 16 samples, more than 300 lab operations, including mixing and sorting, were automated by the ferrobots — that is more than 3,000 individual movements, or actuations. In their reliability studies, the researchers say they showed that the ferrobots could perform more than 8 million actuations without mistakes.
