Hermetic mini LED is autoclavable for medical applications

Hermetic mini LED is autoclavable for medical applications

Technology News |
SCHOTT has launched a Mini LED for lighting applications in dental and medical technology that claims to be the world', yet fully autoclavable, high-brightness (HB) LED.
By eeNews Europe

Share:

A gas-tight housing made of inorganic, non-aging materials makes the Mini LED robust and withstands chemicals, corrosion, and pressure, even with changing temperatures. The Mini LED is a reliable light source that efficiently emits high-quality light over a long period of time. SCHOTT will be presenting this new development for the first time ever from November 12 to 15 at COMPAMED in Dusseldorf, Germany (hall 8b, booth H08).

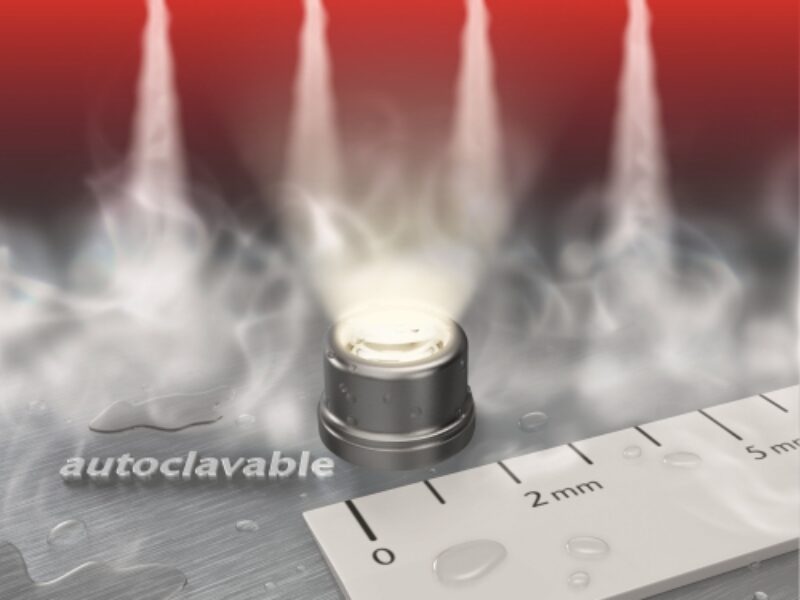

The autoclavable High Power LED features a diameter of less than 2 mm.

The SCHOTT Mini LED is suitable as a lighting solution for dental and medical equipment and instruments that must be reliably autoclavable. Typical applications include dental turbines, cameras, ultraviolet curing, endoscopes, laparoscopes, otoscopes, and surgical instruments. The Mini LED allows the physician to position its light source closer to the treatment area and illuminate it better. Hard-to-reach regions of the patient’s body can be illuminated more clearly during surgery or a clinical examination. Thanks to the miniaturized size of the Mini LED it is now possible, for the first time ever, to equip medical devices with light that design limitations had long made unfeasible.

“We have tested the Mini LED very thoroughly. It has proven to be extremely robust, and withstands, among other things, at least 3,500 autoclave cycles at 134 degrees Celsius (273.2 degrees Fahrenheit) and 2 bar ambient pressure,” explained Dr. Frank Gindele, Development Manager for LED products at SCHOTT Electronic Packaging.

The Mini LED is available in both customer-specific housing shapes with contact pins and in SMD design. The device can be installed in any medical device. Furthermore, SCHOTT offers the product in accordance with customer requirements in different color temperatures, light colors, radiation profiles, and optical properties, such as light flow.
