High density arrays target high-power UV LED applications

High density arrays target high-power UV LED applications

New Products |
By eeNews Europe

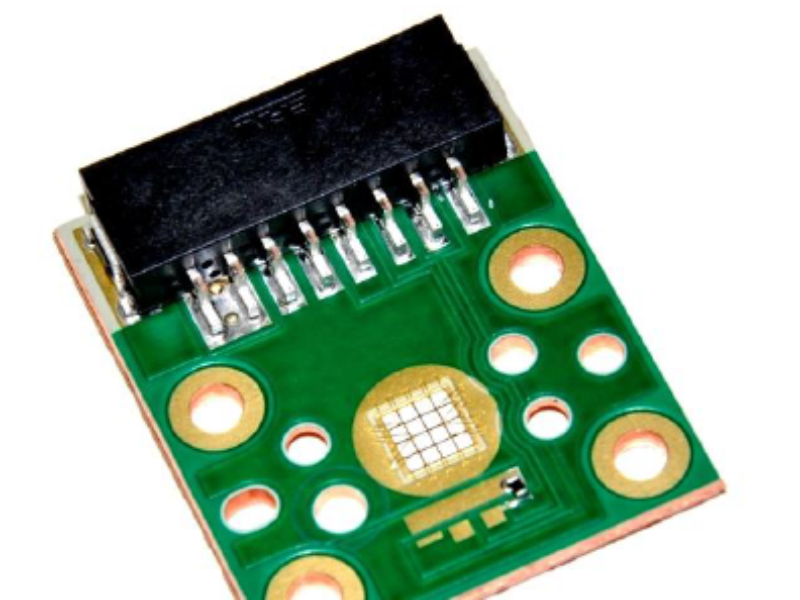

LumiBright UV Boards offer maximized heat and current spreading to deliver high UV optical power with superior thermal management and open platform flexibility that provides for compact UV LED design solutions. LumiBright UV Boards utilize chip-on-board LED technology with metallic core PCB substrates that feature a large emitting area using a closely packed array of UV LED chips. Standard center wavelengths include 365 nm, 385 nm, 395 nm and 405 nm.

The 1.1 mm square LED die can be PCB mounted as a single chip or in arrays up to 4 by 4 chips to provide 19.4 mm2 of source area. Each die can be driven to emit near 2 W/mm2, therefore a 16-die array can supply close to 40 Watts of UV optical power.

LumiBright UV Boards emit directly into the air with no epoxy or lens encapsulation.  Light extraction is maximized providing a Lambertian far-field distribution pattern to support optical design flexibility. The product line offers multiple and customizable configurations and small footprint to facilitate integration into OEM systems. With a large surface area, liquid light guides can be easily butt-coupled to the LumiBright UV Board for spot-curing applications.

LumiBright UV Boards have a low thermal resistance allowing high current density while maintaining a low junction temperature. The result is the ability to drive the UV LEDs to the demanding power levels necessary for industrial processes while maintaining long lifetime. An on-board thermistor permits real-time temperature measurement for either closed-loop control or active monitoring of cooling system operation to optimize UV LED lifetime that can exceed 10,000 hours. LumiBright UV Board accessories include thermal management devices, wire harnesses, and driver/controllers.
