High density source measurement unit to speeds semiconductor characterization

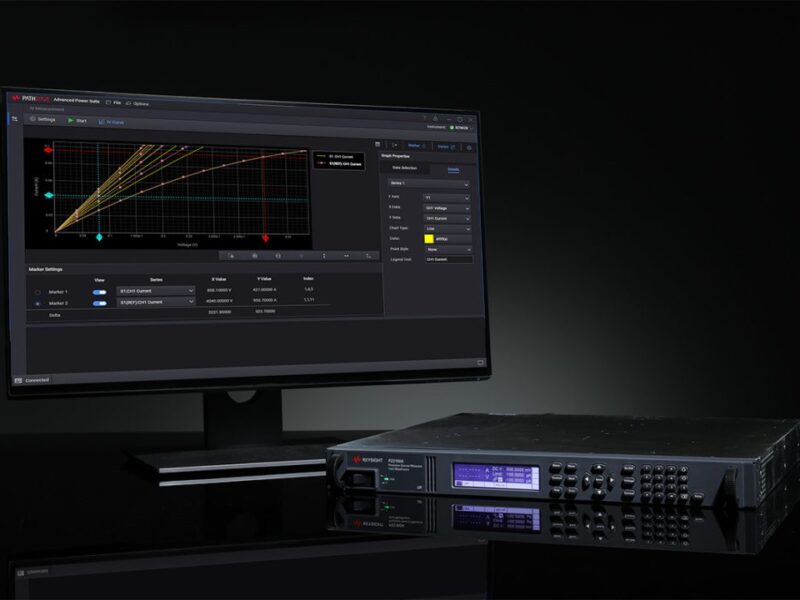

Keysight Technologies has introduced the PZ2100 Series high-channel density precision Source Measurement Unit (SMU), a new instrument giving digital development engineers 20 precision SMU channels within a 1U rack space to speed semiconductor characterization of IC designs.
While innovation cycles are shortening and digital standards are evolving, designing a semiconductor component or device and delivering it to market remains a time-intensive, technical process. Digital development engineers must connect and test multiple ports on a single device-under-test (DUT) throughout the design cycle to troubleshoot and characterize the performance of the IC. Without high-density, automated characterization, engineers risk slowing their delivery timelines as they validate with complex, multiport designs using complicated and low-density test setups.
The PZ2100 Series SMU addresses this risk by giving design engineers a high-density option that is scalable to 20 channels in a compact 1U rack configuration. The instrument also speeds time-to-market with flexible software options, simplified system integration and synchronization, and application-specific measurement capabilities, allowing them to focus more time on semiconductor characterization and less on synchronization.
The PZ2100 Series SMU delivers the following benefits:
- Single-box solution — Saves time by simplifying channel stacking and synchronization to remove integration and coding complexity. The user-friendly GUI accelerates test prototyping, debugging, and troubleshooting while the PathWave IV Curve Measurement software enables quick measurements and synchronization without programming.
- Scalable, compact, and flexible — Saves rack space by offering up to 20 SMU channels in a valuable 1U full-width form factor that does not require cooling spacers when stacked. Available in five SMU module options that are configurable and upgradeable.
- All-in-one SMU module — Reduces cost by integrating pulser and digitizer functions with conventional SMU functions, such as precise DC voltage and current sourcing and measuring to meet emerging requirements without additional instruments.
Toshio Kimura, General Manager for Furukawa Electric’s Next Generation Components Development Department, Next Generation Photonics Business Innovation Project Team, said: “By embedding Keysight’s PZ2100 High-Channel Density Precision SMU into our test system, it increases our test throughput for developing and mass-producing optical components for broadband, long-distance transmission. In addition, it helps us reduce our test system footprint with up to 20 channels of SMUs installed in a 1U rack space. This flexible, scalable, and modular solution can also accommodate future test needs, helping to reduce overall test costs.”
Carol Leh, Vice President and General Manager for Keysight’s Electronic Industrial Solutions Group’s Center of Excellence, said: “With options that scale up to 20 SMU channels, the PZ2100 Series offers five times more channel density than equivalent SMUs, making it the highest channel density SMU in a 1U form factor in the market. Combine this with the PathWave IV Curve software for quick, programming-free IV measurements, and you have an instrument that allows you to focus more of your time on actual semiconductor characterization and less time on synchronization and system bring-up.”
