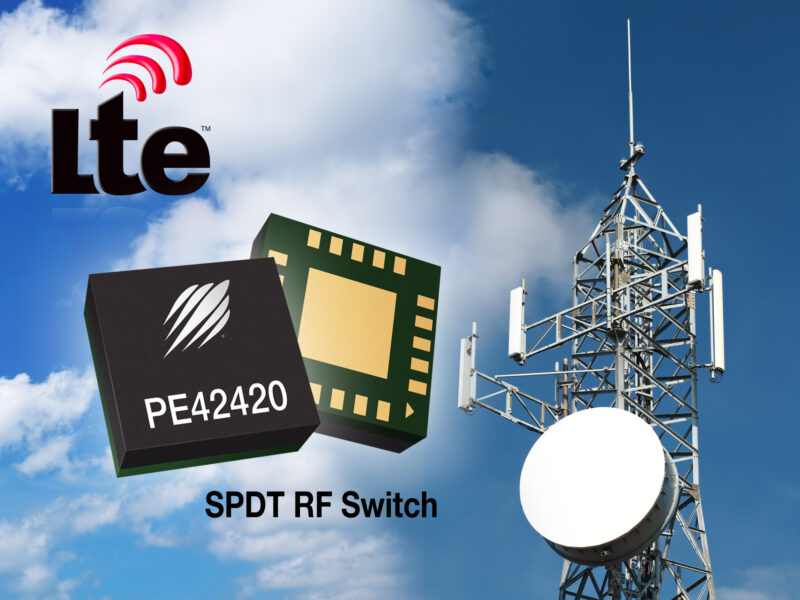

The switch features HaRP technology enhancements to deliver high linearity, with an IIP3 of 65 dBm. By providing high linearity and isolation in a single, small package, the PE42420 switch simplifies Digital Pre-Distortion (DPD) loop design. This high-performance switch enables increased network capacity and higher data rates in infrastructure applications such as Base Station Transceiver Systems (BTSs), Remote Radio Heads (RRHs), and wireless backhaul; as well as Industrial, Scientific and Medical (ISM) band devices that operate in the 2.4 GHz and 5.8 GHz frequencies.

Peregrine says that network equipment vendors are being challenged to provide mobile operators with flexible, backward-compatible solutions to replace 2G and 3G network products with LTE-ready systems that are capable of supporting multiple standards, at the same time as demand for higher data rates is requiring improved network performance, driving market needs for high-isolation and high-linearity RF components.

In order to maximise network performance in next-generation wireless communication systems, high port-to-port isolation is required, to prevent the output signal from spilling into adjacent radio channels or bands. Additionally, because the DPD receiver is shared by multiple Power Amplifiers (PAs) in these systems, high isolation between the multiple paths ensures that the PA that is being sampled is not contaminated by other signals. The 0.1 to 6 GHz PE42420 switch supports 1.8V control logic, enabling the use of lower-voltage, and lower-power, microcontrollers. ESD tolerance of 2kV HBM on all pins eases manufacturing and results in higher reliability of the end product.

The PE42420 Evaluation Kit (part # EK42420-02, $95.00) is available, to enable designers to evaluate the PE42420 switch in their applications. The PE42420 switch is available in a 20-pin 4 mm x 4 mm LGA package and is priced starting at $1.25 each.
