High resolution 6.4-inch TFT display delivers consistent colour reproduction

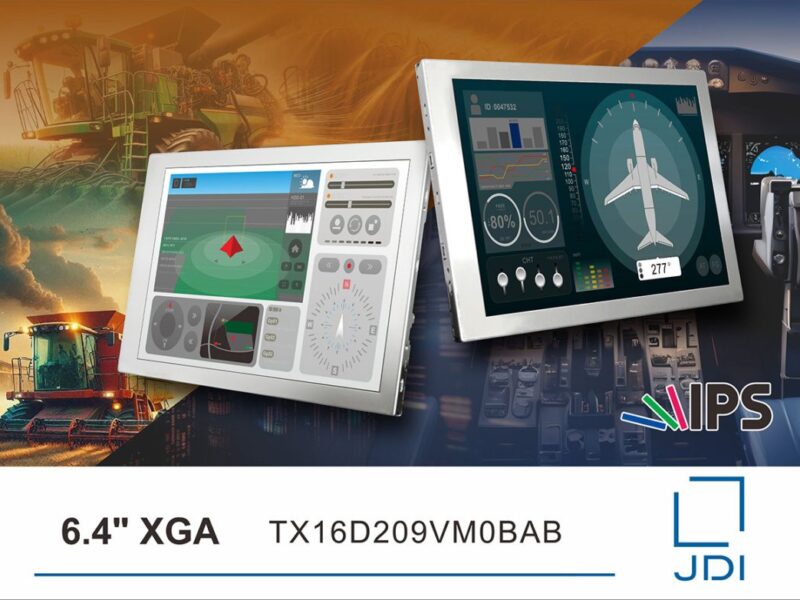

A new 6.4-inch industrial TFT display module, the TX16D209VM0BAB, manufactured by JDIT-K (JDI Taiwan Kaohsiung) features XGA (1024 x 768 pixels) resolution, a 4:3 aspect ratio, and employs IPS (in-plane switching) display technology to ensure excellent optical performance and consistent colour reproduction.
The latest LTPS (low-temperature polycrystalline silicon) process implemented in the 6.4-inch TFT display module enables high resolution, high brightness and increased pixel density while maintaining low power consumption. With a contrast ratio of 1500:1, brightness of 1500 cd/m², 60% NTSC colour gamut and 200 PPI (pixels per inch), the display delivers exceptional optical performance and elevated levels of colour saturation and image stability. Additionally, the display features a dimmable backlight with a maximum power consumption of 4.5W and a LED lifetime of 70,000 hours. Across the operating temperature range of -30°C to +80°C, the optical performance remains sustainable and consistent.
The 6.4-inch display module has external mechanical dimensions of 153.0- x 118.0- x 8.7-mm (width x length x diameter) with an active display area of 129.8- x 97.3-mm (width x height). The 20-pin LVDS data interface supports 8-bit RGB data, enabling a colour palette of up to 16.7 million colours.
Benson Huang, marketing manager, JDIT-K, said, “The new 6.4-inch JDIT-K XGA display meets and supports customers’ needs for a high-performance, high-quality medium-sized TFT display module. IPS technology ensures exceptional colour performance and highly accurate image reproduction.” JDIT-K is committed to developing and providing premium, high-quality display modules and ensuring long-term product availability, which is essential for many industrial systems and equipment.
The new TX16D209VM0BAB TFT display module is an electrically and mechanically compatible, drop-in replacement for the existing TX16D201VM0BAB display module, which is now in an end-of-life (EOL) phase. Among the medium-size 6.4-inch to 6.5-inch, 4:3 format TFT display modules available on the market, the new JDIT-K display module offers XGA resolution, making it suitable for customers with 6.5-inch VGA displays looking to develop next-generation products.
Suitable for both indoor and outdoor environments, typical applications for the new JDIT-K 6.4-inch TFT display include medical ultrasound devices, industrial endoscopes, aviation systems, robotic controllers and agricultural equipment. The TX16D209VM0BAB TFT display module is now available through JDIT-K’s distribution sales partners.
www.jditk-j-display.com
www.j-display.com/english/index.html
