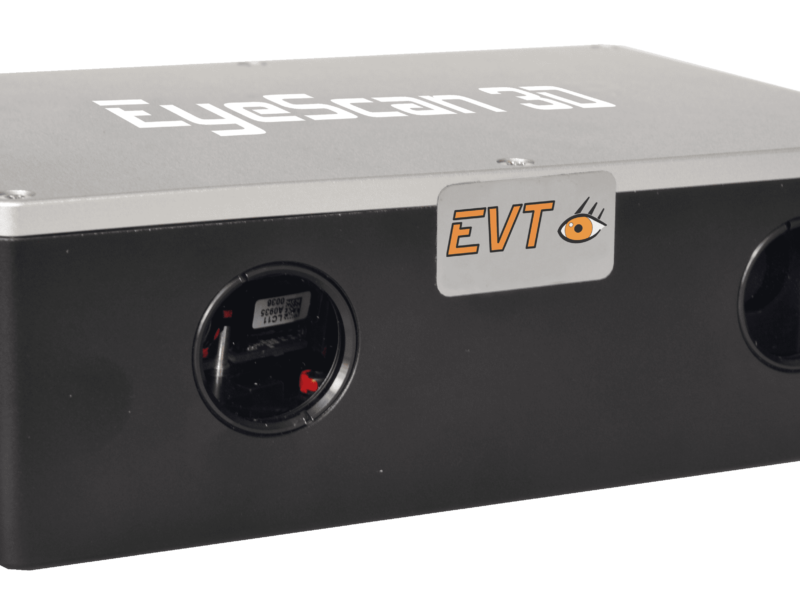

Industrial 3D-sensor supports shape scanning and 3D data records
Stripe projection, image recording and generation of the point cloud are performed in an integrated manner based on an intelligent camera. The projector from Texas Instruments and the camera are synchronized with a frequency of 60 Hz. The EyeScan VR 3D outputs the recorded 3D data directly as a point cloud or a grayscale-coded range map to the evaluation computer and can be integrated in industrial installations via the Industrial Ethernet interface. Commands applications such as Bin-Picking, 3D-Matching and robot guidance can be programmed easily. The EyeScan VR 3D features a robust metal housing with IP65 protection, screw-type standard industrial connectors, a 24V connection, an Ethernet interface as well as hardware and software triggers.
Visit EVT Eye Vision Technology at www.evt-web.com
