Industrial Micro-ATX motherboard targets AI image processing

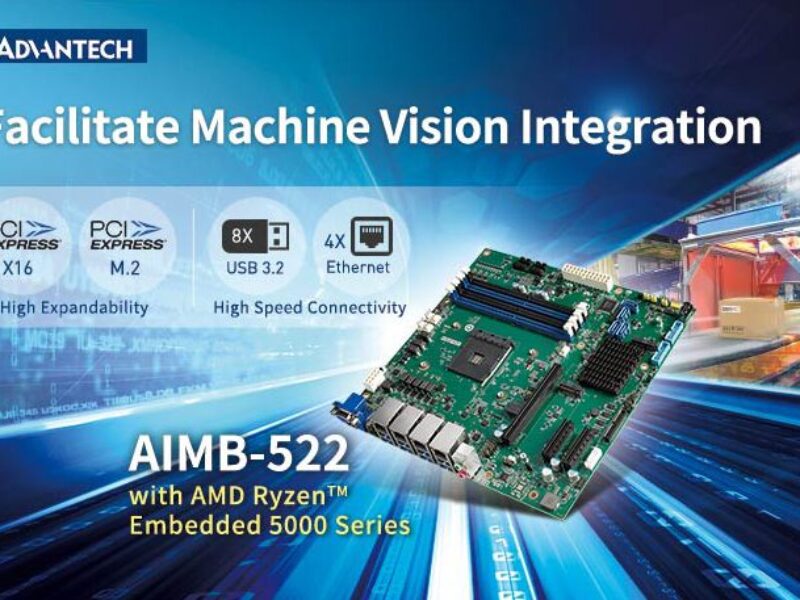

Advantech has released the AIMB-522, an industrial Micro-ATX motherboard for AI image processing in automation and surveillance. AIMB-522 leverages AMD’s first desktop processor, the Ryzen™ Embedded 5000, which provides 16 high-performance Zen 3 cores. In addition, AIMB-522 features a suite of technologies that empower high computing performance efficiency — these include PCIe Gen 4 expandability, four Gigabit Ethernet ports, and eight USB 3.2 ports. This combination of features and functions makes the motherboard ideal for factory automation, smart logistics, and intelligent surveillance applications.
The AIMB-522 Micro-ATX motherboard features the AMD Ryzen™ Embedded 5000 processor with Zen 3 performance, delivering superior processing and power efficiency. The Instructions per Clock, 16 cores, and L3 cache provided by Zen 3 is excellent for latency-sensitive applications in smart manufacturing, automated visual inspection, and intelligent surveillance. These performance gains are delivered with no increase in power consumption or TDP. Indeed, the industry-leading 7nm process enables AMD Ryzen™ Embedded 5000 Series to deliver a 24% improvement in energy efficiency and 2.8-fold lead when compared to previous generations and competing architectures respectively.
Computer vision applications require the seamless integration of high-speed digital cameras. Consequently, AIMB-522 Micro-ATX motherboard features four Gigabit Ethernet ports and eight USB 3.2 10 Gbps ports. These interfaces provide complete connectivity for high data throughput cameras with transfer bandwidths up to 350 MB/s and/or 60 fps. These features make AIMB-522 capable of integrating more than ten high quality video cameras without additional peripherals cards. For extra connectivity, the onboard PCI-Express x4 slots offer the flexibility needed to support more camera devices or industrial controllers with add-on cards.
The Advantech AIMB-522 Micro-ATX motherboard supports one PCI-Express x16 Gen4 bus standard for graphics demanding applications. In addition, its two PCI-Express x4 slots offer the expandability needed for robotic controller card integration, while the onboard M.2 M-Key socket supports high-speed SSD for Real-time OS operations. This expandability for industrial peripherals enables AIMB-522 to empower controller and factory automation upgrades, and facilitates AI-enabled imaging processing.
The Advantech AIMB-522 industrial Micro-ATX motherboard is available now.
