Interplex rolls “game-changing” battery interconnect system for EVs

Interplex rolls “game-changing” battery interconnect system for EVs

New Products |
By Christoph Hammerschmidt

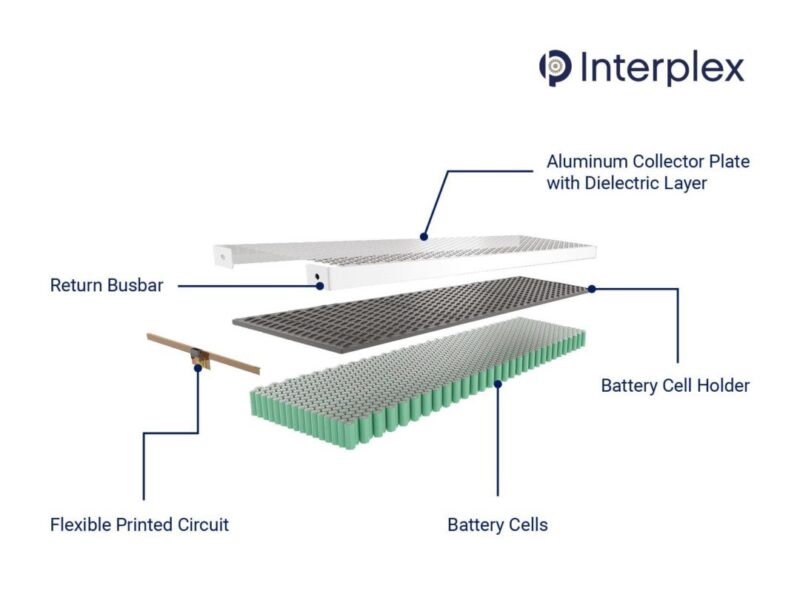

Interconnect solution provider Interplex has expanded its product portfolio of interconnect solutions for use in electric vehicle (EV) batteries: After battery modules based on cylindrical and standard prismatic cells, the company’s latest Cell-PLX version is optimized for next generation prismatic cells.

Cell-PLX is part of an expansive array of solutions supporting EV battery implementation which also includes battery module enclosures, cooling plates, busbars, etc. These interconnects leverage the comprehensive vertical integration that sets Interplex apart from other suppliers – where stamping and molding, as well as assembly (including laser and ultrasonic welding) plus testing are all covered.

Compliant with USCAR 2-6 automotive performance requirements, the Cell-PLX interconnect platform provides the data transfer capabilities needed for constant monitoring of voltage and temperature parameters, with the ability to cover battery module voltages from 12V to above 800V. Thanks to inherent scalability, it can be adapted to suit any battery shape or size, with battery modules consisting of thousands of cells being addressed.

Through the new Cell-PLX offering, Interplex can deal not only with conventional prismatic cells in plastic carriers, but also with the higher-density laminated type prismatic cells that EV OEMs are now starting to specify for their battery models. These interconnect solutions can handle current densities up to 15A/mm². They provide the robustness needed to function even under intense vibrations, the vendor promises. They can be supplied with a choice of either aluminium or copper current collecting layers, each accompanied by a UL 94 rated dielectric insulation layer. Plastic or metal housing options are available, both being produced to the highest levels of precision.

“Incorporating laminated type prismatic cells into EV batteries will mean larger amounts of energy can be stored within a more compact space. This is clearly advantageous, leading to battery modules that have tighter dimensions and are more lightweight,” Randy Tan, Product Portfolio Director for Energy, Interconnects at Interplex, explains. “Having an interconnect technology that is purposely aligned with these cells is vital. This should provide superior signal integrity alongside sufficient insulation. In addition, the production processes involved must be ready to attend to customers’ volume demands. However, many suppliers are not yet able to offer this.”

www.interplex.com
