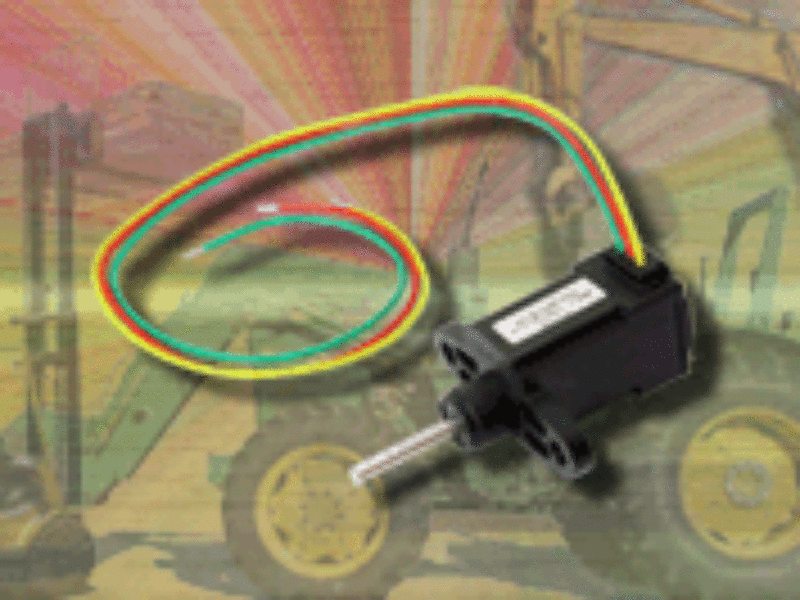

Linear position Hall effect sensor features short electrical strokes from 0 mm to 10 mm

Linear position Hall effect sensor features short electrical strokes from 0 mm to 10 mm

New Products |
By eeNews Europe



The Hall effect technology of the new 20 LHE gives it the ability to perform in conditions involving high-frequency vibrations up to 20 G and shocks up to 50 G. With a long life of 10 million cycles, the device is ideal for short stroke measurements in industrial applications including tillers heads for fork lift steering; tractor gear shifts; truck tilt sensors; and pressure measurement and pedal displacement systems.

The 20 LHE features accurate linearity down to ±1%. The sensor offers analog ratiometric or digital PWM output, and provides continuous performance for the life of the device with no drift of linearity. The 20 LHE operates with a supply voltage of 5 V ±10% and supply current of <16 mA typical, and withstands +20 V overvoltages and −10 V reverse voltages. The recommended load resistance is 1 kΩ for analog output and PWM output. The device is compliant to RoHS directive 2002/95/EC.

Samples of the 20 LHE are available now. Production quantities will be available in Q1 2012, with lead times of 12 weeks for large orders.

More information about the 20 LHE linear position sensor at  https://www.vishay.com/docs/57115/20lhe.pdf
