Low current LDO regulators cut stand-by power

Low current LDO regulators cut stand-by power

New Products |
By Jean-Pierre Joosting

Toshiba Electronics Europe GmbH has launched the first three devices in the new TCR1HF series of low drop-out (LDO) regulators. Featuring high input voltage and low current consumption the TCR1HF18B, TCR1HF33B, and TCR1HF50B offer fixed output voltages of 1.8-0V, 3.3-V, and 5.0-V respectively.

The new additions offer a wide input voltage range of 4-V to 36-V to support up to 20-V for USB power delivery (USB-PD) or 24-V-powered equipment like mobile equipment, home appliances and factory automation equipment. They feature a low 1 µA quiescent current, allowing electronic equipment to maintain stand-by operation with very low power consumption.

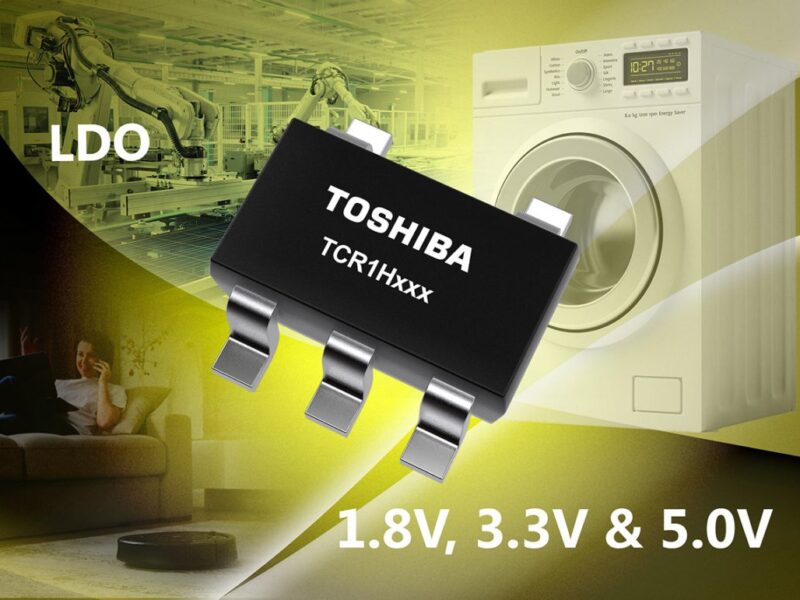

Housed in small plastic molded SOT-25, the TCR1HF ICs drive up to 150 mA and operate at temperatures between -40°C to +125°C. Moreover, with their fast load transient response of -60-mV/+50-mV, they help ensure a stable output voltage – even during a sudden change in current, for example, when equipment moves from stand-by to operating state. Other standard features include overcurrent protection, thermal shutdown, and auto-discharge.

All three new LDO regulators in the TCR1HF series will start shipping today.
