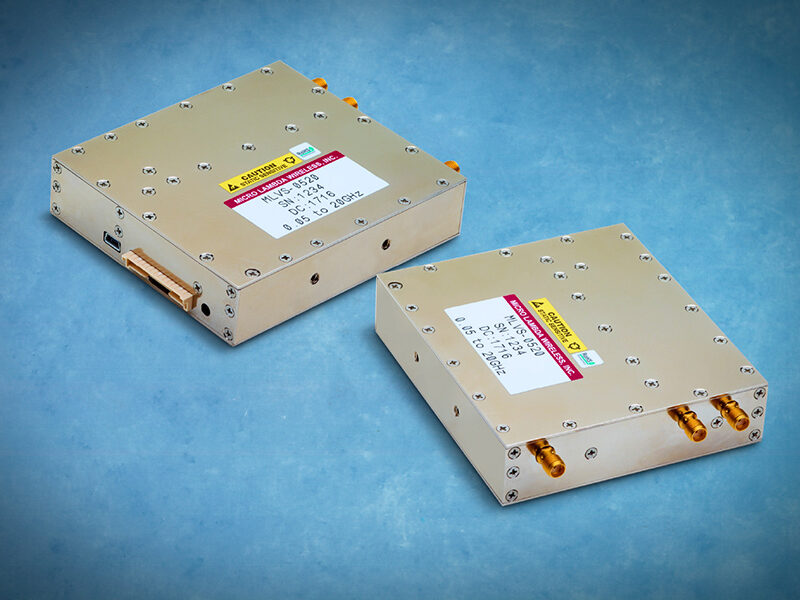

Low-noise wide-band frequency synthesizer
A standard frequency model is available covering 500 MHz to 20 GHz with options to cover down to 50 MHz and up to 21 GHz in a single unit. Phase noise at 5 GHz at 10 kHz offset of -130 dBc/Hz is provided. The standard model is specified to operate over the 0 to +65ºC temperature range, but extended temperature versions are available.
This series of frequency synthesizers have been designed in a miniature package that will fit within a single slot PXI chassis. Dimensions are 2.5- x 2.5- x 0.65-inches (6.35- x 6.35- x 1.65-cm). Units come with a 9 pin molex connector for all input voltages and signals as well as a standard USB mini-b connector.
Applications include wide band receivers, automated test systems, telecom, satcom, UAVs and drones and a variety of military and commercial test applications.
