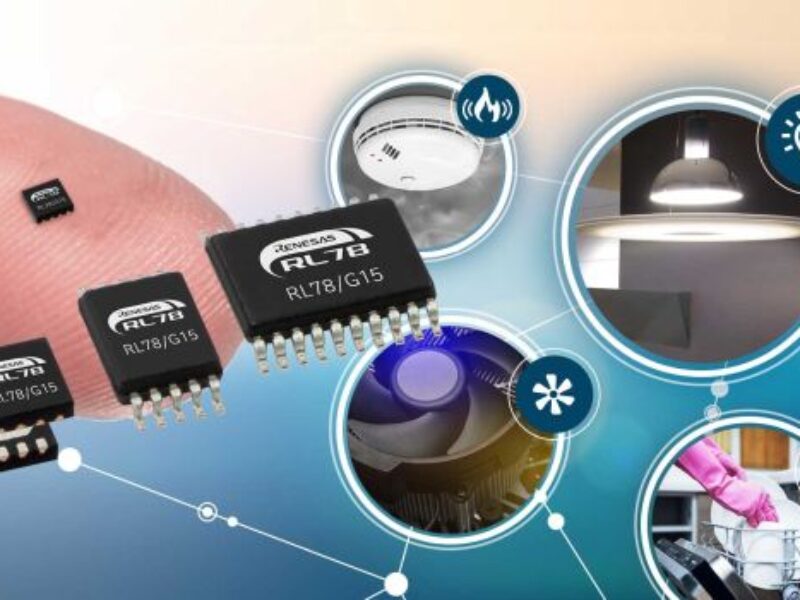

Semiconductor manufacturer Renesas has introduced a new general-purpose microcontroller (MCU) in the low-power RL78 Family, with small package sizes that target 8-bit MCU applications. The RL78/G15 features many peripheral functions and 4-8KB of code flash memory in package sizes ranging from 8 to 20 pins, with the smallest 8-pin device measuring only 3 x 3 mm.
These features are designed to keep system size small and reduce the cost of end systems, such as industrial, consumer, sensor control, lighting, and inverter applications. In addition, the maximum operating ambient temperature of 125°C facilitates optimal thermal design, covering a wide temperature range and allowing the MCU to be used near heat-generating components such as inverter motors.
“The RL78 family is known for its excellent power efficiency and optimized peripheral functions,” says Toshihiko Seki, Vice President of Renesas’ MCU Device Solution Business Division. “To date, we have shipped over 7.1 billion units in the 11 years since its release, and we are currently shipping 100 million units per month. Renesas will continue to expand cost-effective and easy-to-use 8-bit and 16-bit MCUs that support customers’ requirements.”
Key Features of the RL78/G15 include:
- RL78 16-bit CPU core operating at 16MHz
- Wide operating ambient temperature range of -40°C to 125°C
- Available in 8-pin to 20-pin packages, with the smallest 3 mm x 3 mm WDFN package
- All pins can be used for general-purpose I/O, except VDD and VSS power supply pins
- Up to 8 KB of code flash memory, 1 KB of data flash, and 1 KB of SRAM
- Supports operating voltages from 2.4V to 5.5V
- Multiple serial interfaces supported: CSI, UART, Simple I2C, and multi-master I2C
- High-precision oscillator (±1.0%)
- Built-in comparator
Similar to other RL78 devices, engineers designing with the new RL78/G15 can use the GUI-based Smart Configurator to easily generate driver code for peripheral functions. The company also offers the Fast Prototyping Board (FPB) for evaluation, which comes with Arduino Uno and Pmod Type 6A interfaces with access to all pins.
The RL78/G15 is available now in volume production.
