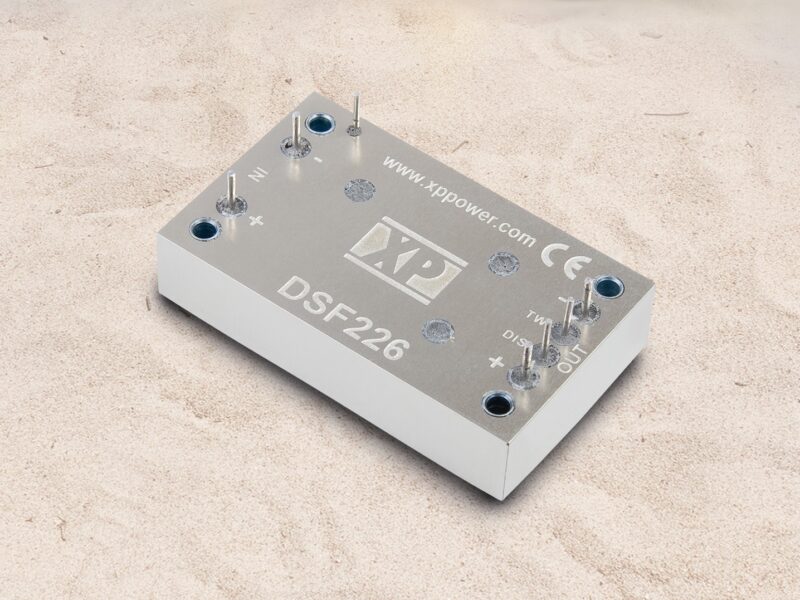

Military-specification active surge protection filter
The encapsulated metal cased unit is capable of delivering up to 200W output and meets the DEF STAN 61-5 part 6 issue 6 load dump requirement. The module also meets the internationally recognised immunity and emission standards MIL-STD 1275A-D, DEF STAN 59-411 & MIL-STD 461C. Providing active surge protection, the unit allows for the full 200W output to be supplied over the entire 15 – 33 VDC including accommodating transients down to 10 VDC for up to 1 sec. The output tracks the input voltage and is clamped at < 36 VDC. The DSF226 can operate from -46C to + 100C. A thermal warning output can be used to control the end-application or disable the filter output. The filter is sutiable for use in combination with XP Power’s MTC family of military-specification DC/DC converters, QSB and ICH series of power bricks. The DSF226 could also be combined with XP Power’s J series of 24V 4:1 input converters for multiple output COTS defence applications.
XP Power; www.xppower.com
