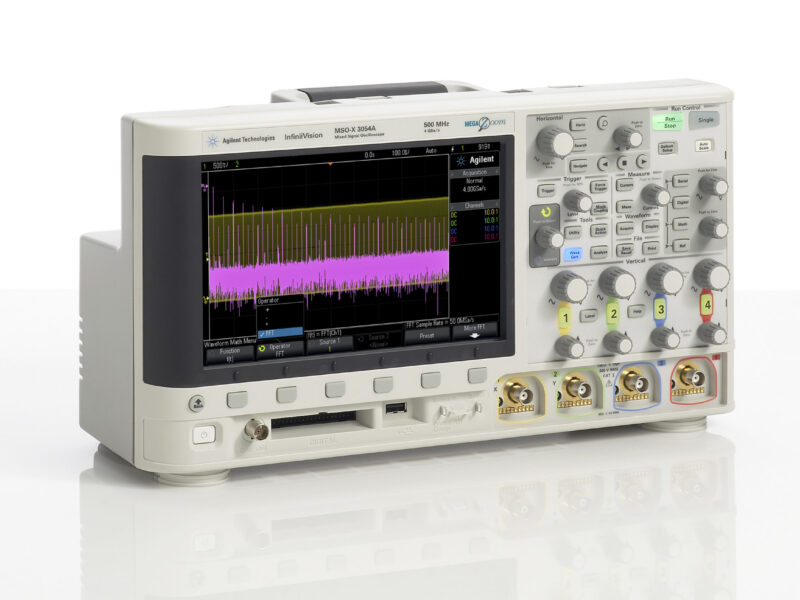

The Agilent InfiniiVision 3000 X-Series scopes step up performance while aggressively holding prices in line, offering bandwidths from 100 MHz to 500 MHz and industry-leading waveform update rates of 1,000,000 waveforms per second. Options include a 16-channel MSO, an integrated function generator, and hardware-accelerated serial protocol decode.
The heart of the InfiniiVision X-Series scopes is an Agilent-designed custom 90-nm CMOS ASIC with 6M gates and embedded memory. This MegaZoom IVsingle-chip architecture enables the industry’s fastest waveform update rates and responsive deep memory along with integrated logic analyzer, function generator, and protocol analyzer functionality so engineers and educators have highly advanced scope performance at economical prices.
InfiniiVision X-Series models provide up to 1,000,000 waveforms per second, with MegaZoom IV technology that also minimizes blind time and maintains responsiveness with deep memory enabled. All InfiniiVision X-Series models are equipped with an 8.5-inch WVGA display, which offers twice the viewing area of other popular scopes. Yet they weigh only 8.5 pounds and conserve bench space with a small footprint, about 15 inches wide and less than 6 inches deep.
The units offer optional integrated MSO capability for time-aligned digital and analog signal viewing, an optional integrated WaveGen function generator, and optional hardware-accelerated serial protocol analysis (on the 3000 X-Series models only). The InfiniiVision X-Series is fully upgradable (including bandwidth) so engineers and technicians can purchase what they need today and add capability as their performance needs evolve. Optional measurement software packages add functionality, either at time of purchase or as needs arise.
