Motor-control functions shape 8-bit microcontroller feature set

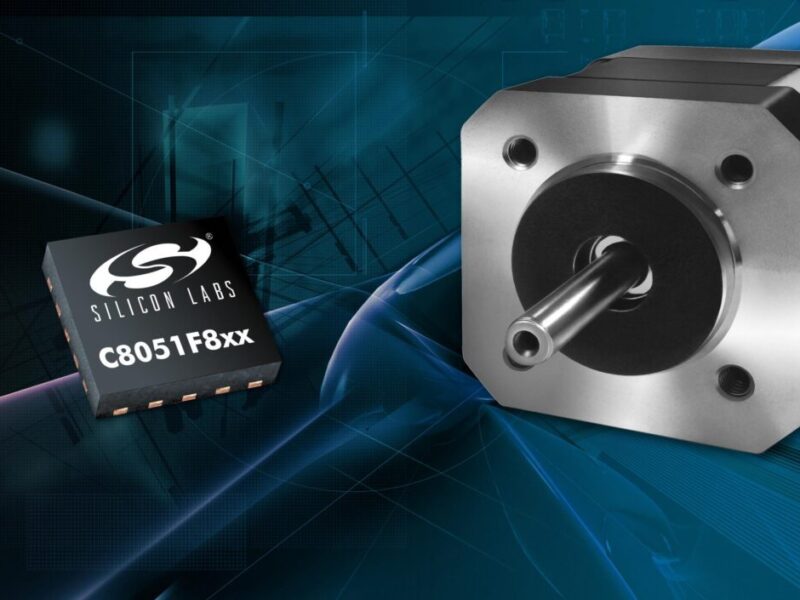

These highly integrated, 8-bit microcontrollers (MCUs) are optimised for cost-sensitive motor control applications. The new C8051F85x/6x MCUs combine analogue and communications peripherals, flash sizes ranging from 2 kB to 8 kB, high performance, small-footprint packaging and cost-effective pricing, making them suitable for brushless dc motor control applications used in toys, PC and electric fans, electric tools and small appliances. The F85/6x MCUs are a good fit for other consumer and industrial applications such as power supplies, battery chargers, set-top boxes, projectors, lighting equipment and optical transceiver modules. These AEC-Q100-qualified MCUs can also be used in automotive body electronics applications such as window lifts and power seats.
For developers seeking economical mixed-signal MCU solutions that provide high levels of integration and processing performance for analogue-intensive and computationally demanding applications such as motor control. The F85x/6x MCUs feature a high-speed 8051 core that is 50% faster than the closest competitors. This performance enables finer pulse-width modulation (PWM), enhanced motor control efficiency and the ability to execute more complex algorithms for a broad range of motor speeds. The F85x/6x MCUs also support three independent high-resolution PWM channels with a built-in overcurrent protection/fault detection capability specifically targeting motor control and power supply applications.
The F85x/6x MCUs integrate advanced analogue and digital peripherals into a small package. The MCUs include a 12-bit multi-channel analogue-to-digital converter (ADC), two analogue comparators with programmable hysteresis and response time, and a precise internal voltage reference. The MCUs also feature an integrated precision 24.5 MHz low-power oscillator and a low-frequency 80 kHz oscillator, eliminating the need for an external clock or crystal. An on-chip temperature sensor simplifies system calibration without having to add a discrete sensor. Multiple communications peripherals (I2C, SPI and UART) also give developers the flexibility to choose their peripherals based on application requirements. The combination of all these on-chip features enables developers to minimise external components, resulting in lower system cost compared to competing MCUs.
Like all Silicon Labs 8-bit MCUs, the F85x/6x family features a patented crossbar architecture that enables developers to customise peripherals and pinout placement based on their application needs and layout constraints without worrying about pin conflicts. This architecture simplifies PCB routing, minimises PCB layers and reduces design time and system cost through optimal use of pins.
“With pricing starting at $0.30 in high volumes, Silicon Labs’ new F85x/6x MCUs offer the most cost-effective, highly integrated and feature-rich 8-bit solution for analogue-intensive embedded applications such as motor control,” said Diwakar Vishakhadatta, vice president and general manager of 8-bit MCU products at Silicon Labs. “We are also pleased to announce that Silicon Labs’ 8-bit customers can now receive complimentary Keil development tools – the industry’s best 8-bit toolset available in terms of code density and accuracy.”
Silicon Labs is now offering complimentary Keil development tools for its entire portfolio of 8-bit MCUs and wireless MCUs including the new F85x/6x family. The PK51 Professional Developer’s Kit for Silicon Labs 8-bit MCUs supports new devices with extended memory and instruction sets. Available without time or code size limits, the unrestricted Keil toolkit includes a wide range of build tools such assemblers, C compilers, code linker/locators and object converters for use with Silicon Labs’ 8-bit MCU products and Microcontroller Studio. Silicon Labs’ 8-bit MCU customers can download the Keil tools at no charge by visiting www.silabs.com/8bit-software
There are two development kits for the F85x/6x MCU family. The C8051F850-B-DK development kit provides everything designers need to evaluate hardware and develop code including the C8051F850 target board, USB debug adaptor/programmer, power supply, cables, quick-start guide and complimentary downloadable software tools. The ToolStick850-B-SK starter kit enables enables designers to develop and debug application firmware directly on a target F85x/6x MCU using the Silicon Labs IDE.
C8051F85x/6x MCUs come in a 3 x 3 mm 20-pin QFN package and also in 24-pin QSOP and 16-pin SOIC packages, from $0.40 (10,000). The C8051F850-B-DK development kit and ToolStick850-B-SK starter kit are priced at $64.00 and $9.90 respectively.
Silicon Labs; www.silabs.com
