Multi-spectral temperature sensor for hot spot detection, in distribution

Multi-spectral temperature sensor for hot spot detection, in distribution

New Products |
By eeNews Europe

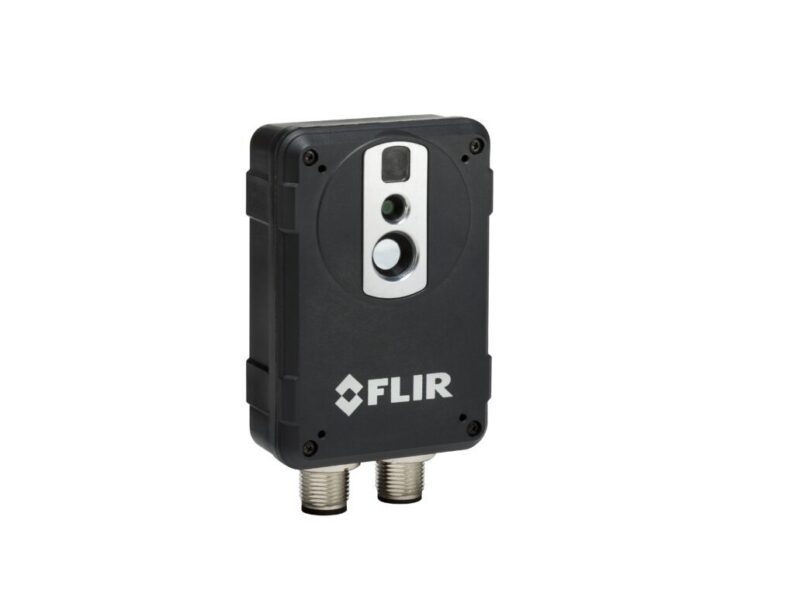

AX8 is positioned as the most cost-effective and smallest thermal camera available and offers an automated multi-spectral temperature sensor for hot spot detection. The camera can be mounted in a number of diverse applications; RS is targeting use of the device in commercial sectors and applications, including process and manufacturing industries, data centres, energy generation and distribution, transportation and mass transit, storage facilities and refrigeration warehouses.

Suitable for continuous thermal monitoring of critical installations and facilities, the camera has an integrated intelligent temperature sensor that senses temperature change and has built-in analysis features to ensure that the camera can determine the change and act upon it. By combining thermal and visual camera capabilities in a compact 54 x 25 x 95 mm package, the device is easy to install in space-constrained areas, providing continuous temperature monitoring and alarming for uninterrupted condition monitoring of critical electrical and mechanical equipment.

Providing continuous safety monitoring to detect hot spots without the need for periodic manual scans, the AX8 helps the early identification of problems, which could include a loose connection or an overloaded fuse, and can guard against unplanned outages, service interruptions or equipment failure.

The streaming video output provides live video of every installation and automated alarming in the case of pre-set temperature thresholds being exceeded. In addition, more advanced alarms such as temperature trending types can be configured using PLCs. There are multiple video options available, with views of thermal imagery, visible light imagery, or the two combined into FLIR’s proprietary MSX multispectral dynamic imaging. MSX provides image detail from the visible camera embossed on the thermal image, providing sharper edge detail, the ability to read labels and greater contextual awareness.

The AX8 also provides: Power over Ethernet (PoE); industry-standard interfaces including Ethernet/IP and Modbus TCP; multiple video streaming formats including MPEG, MJPEG, and H.264; FLIR’s Lepton micro-thermal camera core; a 640 x 480-pixel built-In digital camera; and an IP67-rated housing.

RS Components;
