New 600V MOSFETs for highly efficient low and high power applications
The 600V CoolMOS P7 and 600V CoolMOS C7 Gold (G7) series operate at 600 V breakdown voltage and deliver improved superjunction MOSFET performance. The P7 improves the design-in process with benchmark efficiency and optimized price/performance ratio for chargers, adapters, lighting, TV, PC power, solar, server, telecom and EV charging. It is addressing power classes from 100 W to 15 kW with efficiency gains of up to 1.5 percent in the various topologies, and offers up to 4.2 °C thermal improvement compared to previous parts.
The wide RDS(on) range from 37 mΩ to 600 mΩ for both surface mount (SMD) and through hole packages makes the 600 V CoolMOS P7 suitable for a broad variety of applications and power ranges. In addition, ESD robustness of more than 2 kV (HBM) protects the device from electro static discharge damage in production, offering higher manufacturing quality.The rugged body diode also protects the device during hard commutation events in LLC circuits.

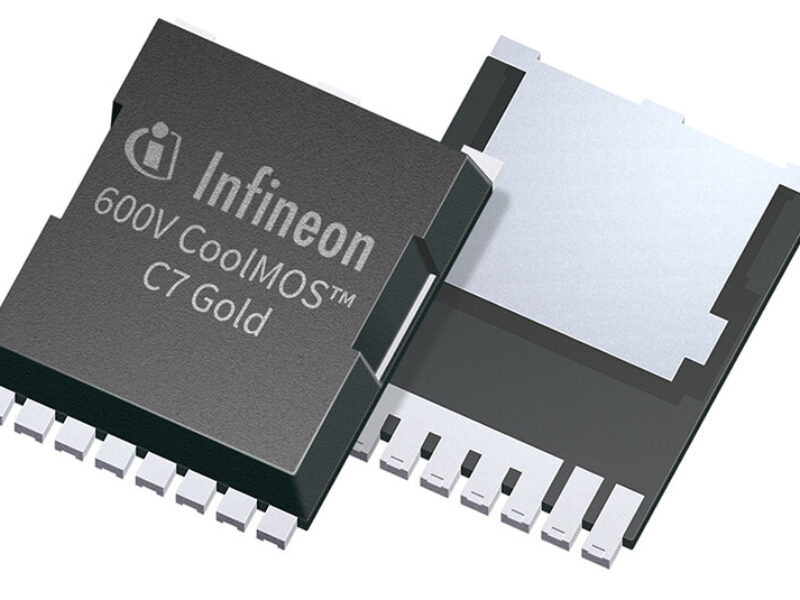

The G7 features a lower RDS(on) from 28 mΩ to 150 mΩ as well as lower gate charge QG, reduced energy stored in the output capacitance, and a 4 pin Kelvin source capability of the TO-Leadless package. This minimizes losses in PFC and LLC circuits and offers a performance gain of 0.6 percent as well as higher full load efficiency in PFC circuits. The low parasitic source inductance of 1 nH also contributes to the increased efficiency levels.
The improved thermal properties in a TO-Leadless package enable the usage in higher current designs while SMD technology allows for a less costly mounting process. Compared to traditional D²PAK, it offers 30 percent footprint, 50 percent height and 60 percent space reduction. Combined, these properties make the device suited to server, telecom, industrial and solar applications.
Both the 600 V CoolMOS P7 and 600 V CoolMOS C7 Gold series are available in high quantities.
Further information is available at www.infineon.com/600v-p7 and www.infineon.com/c7-gold-toll.
