NXP releases LIN transceiver supports robust nodes in LIN bus systems

NXP releases LIN transceiver supports robust nodes in LIN bus systems

New Products |
By admin

The combination of voltage regulator and bus transceiver makes it possible to develop compact yet powerful slave nodes in LIN bus systems. The TJA1028 is able to handle low-speed data communication in vehicles and is suitable for various LIN slave applications such as rain-light sensors, mirror modules, window lifters and switch panels.

Designed specifically to meet the stringent requirements of vehicle OEMs, such as Volkswagen, Audi, Daimler, BMW, Ford, GM, Chrysler, and Renault, the TJA1028 offers strong Electrostatic Discharge (ESD) and Electromagnetic Compatibility (EMC) performance with bus output designed to withstand high voltages, enabling robust automotive designs.

The TJA1028 system basis chip (SBC) family can deliver up to 70 mA and is available in 3.3 V and 5.0 V variants. In order to minimize current consumption, the TJA1028 supports a sleep mode in which the LIN transceiver and the voltage regulator are switched off while still having wake-up capability via the LIN bus. The TJA1028 also offers a low-power standby mode, in which the LIN transceiver is switched off while the voltage regulator is still supplying the microcontroller.

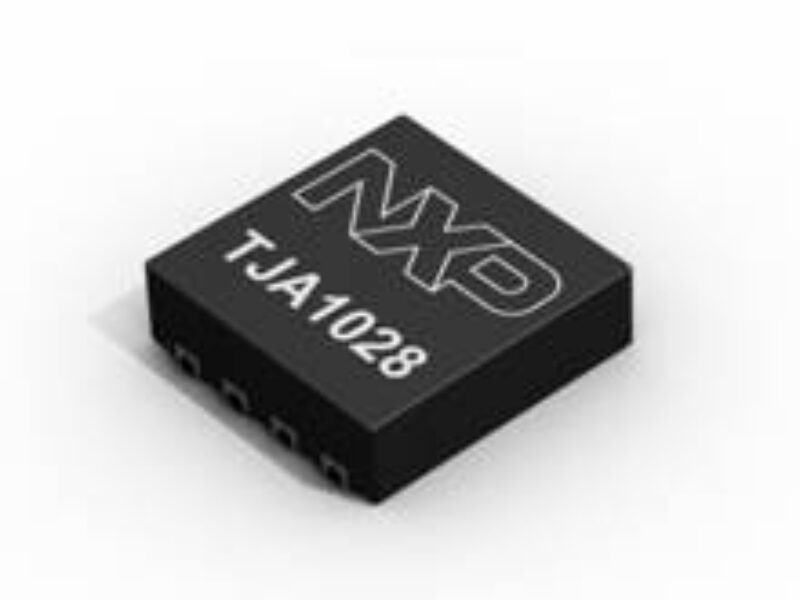

To enable smaller, lighter and more environmentally friendly LIN2.1 modules, the TJA1028 transceiver is available in a leadless HVSON8 package that measures only 3×3 mm. Compared to an SO8 package, the HVSON8 reduces board space by up to 70 percent and enables smaller ECU sizes. The HVSON8 package features better thermal characteristics and improved heat dissipation compared to standard solutions, allowing the voltage regulator to deliver up to 70 mA , which is 40 percent higher than the current industry standard.

The TJA1028T/xxx/20 ensures secure data communication up to 20 kBaud, the maximum specified in the LIN standard. The TJA1028T/xxx/10 versions are optimized for a transmission speed of 10.4 kBaud, as specified in SAE J2602. By providing a flexible networking and power management solution in a single small-sized package, the TJA1028 family provides full PCB design flexibility.

More information about the TJA1028 LIN transceiver at
